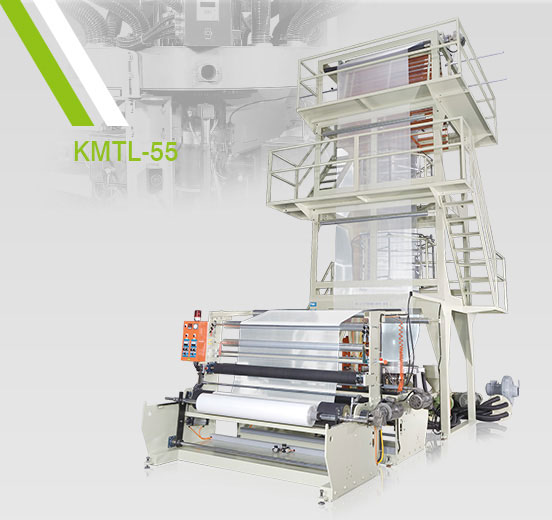

TWO LAYER HDPE/LDPE/ LLDPE HIGH SPEED PLASTIC INFLATION MACHINE
- Model:
- KMTL-55
Detail Specifications / Descriptions
MODEL | KMTL-55 |
---|---|
KMTL-55 | |
SUITABLE MATERIAL | HDPE/LDPE/LLDPE |
HDPE/LDPE/LLDPE | |
FILM THICKNESS | 0.025-0.15 mm |
0.025-0.15 mm | |
FILM WIDTH RANGE | 1400 mm |
1400 mm | |
FILM OUTPUT | 20-150 kgs/hr |
20-150 kgs/hr | |
EXTRUDER UNIT | |
SCREW DIAMETER/TYPE | Ø 55mm x 2 |
Ø 55mm x 2 | |
SCREW L/D RATIO | 28:1 |
28:1 | |
HEATING CAPACITY | 24 kw |
24 kw | |
AUTO THERMO CONTROL | 6 zone |
6 zone | |
BARREL COOLING FAN | 1/8 HP x 4 |
1/8 HP x 4 | |
DRIVING MOTOR | AC 30 HP + Inverter |
AC 30 HP + Inverter | |
DIE UNIT | |
DIE DIAMETER | Ø350 mm |
Ø350 mm | |
AIR RING DIAMETER | Ø400 mm |
Ø400 mm | |
HEATING CAPACITY | 18.4 kw |
18.4 kw | |
AUTO THERMO CONTROL | 3 zone |
3 zone | |
COOLING BLOWER | 7 1/2 HP |
7 1/2 HP | |
TAKE-UP UNIT | |
TAKE-UP ROLLER | 1500 mm |
1500 mm | |
EFFECTIVE WIDTH | 1400 mm |
1400 mm | |
TAKE-UP MOTOR | AC 2 HP |
AC 2 HP | |
TAKE-UP SPEED | 45 m/min |
45 m/min | |
ELEVATING MOTOR | |
WINDING UNIT | |
ROLLER WIDTH | 1500 mm |
1500 mm | |
WINDING WIDTH | 1400 mm |
1400 mm | |
WINDING MOTOR | DC 1 HP |
DC 1 HP | |
MACHINE DIMENSION | 500x500x800 cm |
500x500x800 cm |
