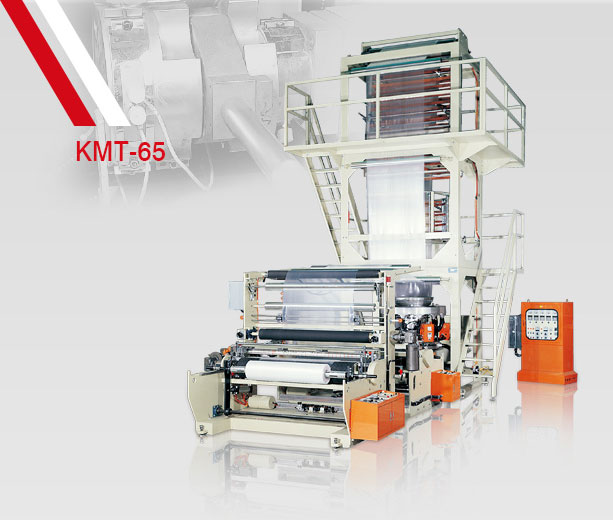

HDPE/LDPE/LLDPE HIGH SPEED PLASTIC INFLATION MACHINE

MODEL	KMT-65
KMT-65
SUITABLE MATERIAL	HDPE/LDPE/LLDPE
HDPE/LDPE/LLDPE
FILM THICKNESS	H: 0.015-0.10 mm L: 0.025-0.15 mm
H: 0.015-0.10 mm L: 0.025-0.15 mm
FILM WIDTH RANGE	1400 mm
1400 mm
FILM OUTPUT	H: 30-90 kgs/hr L: 50-105 kgs/hr
H: 30-90 kgs/hr L: 50-105 kgs/hr
EXTRUDER UNIT
SCREW DIAMETER/TYPE	Ø 65mm
Ø 65mm
SCREW L/D RATIO	26:1
26:1
HEATING CAPACITY	14.7 kw
14.7 kw
AUTO THERMO CONTROL	4 zone
4 zone
BARREL COOLING FAN	1/8 HP x 3
1/8 HP x 3
DRIVING MOTOR	AC 50 HP + Inverter
AC 50 HP + Inverter
DIE UNIT
DIE DIAMETER	H: Ø100/150 mm L: Ø350 mm
H: Ø100/150 mm L: Ø350 mm
AIR RING DIAMETER	H: Ø150/180 mm L: Ø400 mm
H: Ø150/180 mm L: Ø400 mm
HEATING CAPACITY	H: 10.6 kw L: 14.4 kw
H: 10.6 kw L: 14.4 kw
AUTO THERMO CONTROL	H: 2 zone L: 3 zone
H: 2 zone L: 3 zone
COOLING BLOWER	5 HP
5 HP
TAKE-UP UNIT
TAKE-UP ROLLER	1500 mm
1500 mm
EFFECTIVE WIDTH	1400 mm
1400 mm
TAKE-UP MOTOR	AC 1 HP
AC 1 HP
TAKE-UP SPEED	50 m/min
50 m/min
ELEVATING MOTOR
WINDING UNIT
ROLLER WIDTH	1500 mm
1500 mm
WINDING WIDTH	1400 mm
1400 mm
WINDING MOTOR	DC 1 HP
DC 1 HP
MACHINE DIMENSION	600×400×600 cm
600×400×600 cm

* Remark: The above machine specification and production range can be changed without any notice due to kind of different application.
