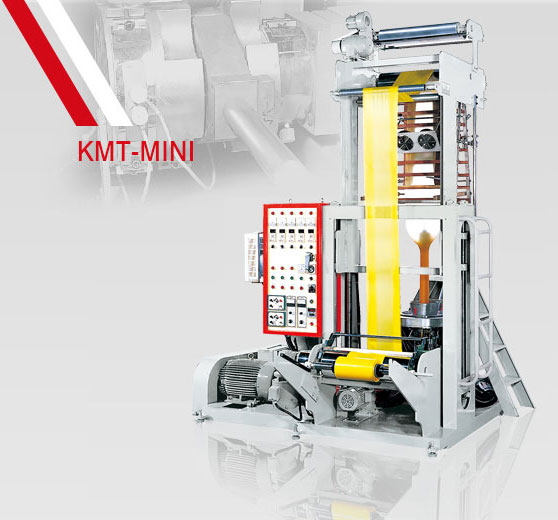

HDPE/LDPE/LLDPE HIGH SPEED PLASTIC INFLATION MACHINE

MODEL	KMT-MINI
KMT-MINI
SUITABLE MATERIAL	HDPE/LDPE/LLDPE
HDPE/LDPE/LLDPE
FILM THICKNESS	H: 0.008-0.10 mm L: 0.015-0.15 mm
H: 0.008-0.10 mm L: 0.015-0.15 mm
FILM WIDTH RANGE	H: 550 mm L: 550 mm
H: 550 mm L: 550 mm
FILM OUTPUT	H: 15-38 kgs/hr L: 15-45 kgs/hr
H: 15-38 kgs/hr L: 15-45 kgs/hr
EXTRUDER UNIT
SCREW DIAMETER/TYPE	Ø 40mm
Ø 40mm
SCREW L/D RATIO	26:1
26:1
HEATING CAPACITY	6.6 kw
6.6 kw
AUTO THERMO CONTROL	3 zone
3 zone
BARREL COOLING FAN	1/8 HP x 1
1/8 HP x 1
DRIVING MOTOR	AC 15 HP + Inverter
AC 15 HP + Inverter
DIE UNIT
DIE DIAMETER	H: Ø60/80 mm L: Ø120 mm
H: Ø60/80 mm L: Ø120 mm
AIR RING DIAMETER	H: Ø120 mm L: Ø150 mm
H: Ø120 mm L: Ø150 mm
HEATING CAPACITY	H: 4.6 kw L: 3.3 kw
H: 4.6 kw L: 3.3 kw
AUTO THERMO CONTROL	2 zone
2 zone
COOLING BLOWER	3 HP
3 HP
TAKE-UP UNIT
TAKE-UP ROLLER	660 mm
660 mm
EFFECTIVE WIDTH	550 mm
550 mm
TAKE-UP MOTOR	AC 1/2 HP
AC 1/2 HP
TAKE-UP SPEED	75 m/min
75 m/min
ELEVATING MOTOR	AC 1/2 HP
AC 1/2 HP
WINDING UNIT
ROLLER WIDTH	660 mm
660 mm
WINDING WIDTH	550 mm
550 mm
WINDING MOTOR	DC 1/2 HP
DC 1/2 HP
MACHINE DIMENSION	380×300×310 cm
380×300×310 cm

* Remark: The above machine specification and production range can be changed without any notice due to kind of different application.
