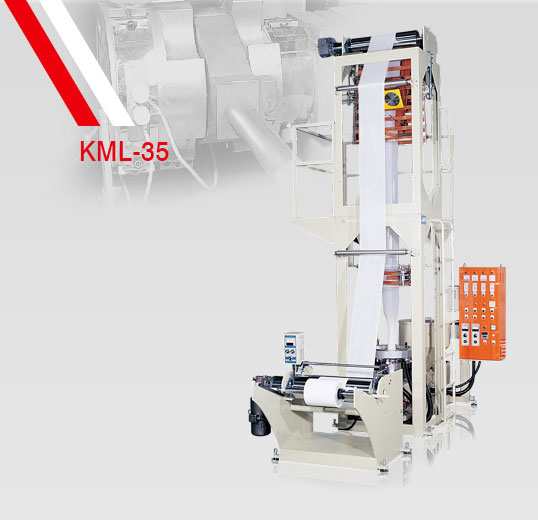

LDPE/LLDPE HIGH SPEED PLASTIC INFLATION MACHINE
- Model:
- KML-35
Detail Specifications / Descriptions
| MODEL | KML-35 |
|---|---|
| KML-35 | |
| SUITABLE MATERIAL | LDPE/LLDPE |
| LDPE/LLDPE | |
| FILM THICKNESS | 0.015-0.15 mm |
| 0.015-0.15 mm | |
| FILM WIDTH RANGE | 500 mm |
| 500 mm | |
| FILM OUTPUT | 10-30 kgs/hr |
| 10-30 kgs/hr | |
| EXTRUDER UNIT | |
| SCREW DIAMETER/TYPE | Ø 35mm |
| Ø 35mm | |
| SCREW L/D RATIO | 26:1 |
| 26:1 | |
| HEATING CAPACITY | 5.2 kw |
| 5.2 kw | |
| AUTO THERMO CONTROL | 3 zone |
| 3 zone | |
| BARREL COOLING FAN | 1/16 HP x 1 |
| 1/16 HP x 1 | |
| DRIVING MOTOR | AC 10 HP + Inverter |
| AC 10 HP + Inverter | |
| DIE UNIT | |
| DIE DIAMETER | Ø100 mm |
| Ø100 mm | |
| AIR RING DIAMETER | Ø150 mm |
| Ø150 mm | |
| HEATING CAPACITY | 2.9 kw |
| 2.9 kw | |
| AUTO THERMO CONTROL | 1 zone |
| 1 zone | |
| COOLING BLOWER | 2 HP |
| 2 HP | |
| TAKE-UP UNIT | |
| TAKE-UP ROLLER | 660 mm |
| 660 mm | |
| EFFECTIVE WIDTH | 550 mm |
| 550 mm | |
| TAKE-UP MOTOR | AC 1/2 HP |
| AC 1/2 HP | |
| TAKE-UP SPEED | 75 m/min |
| 75 m/min | |
| ELEVATING MOTOR | |
| WINDING UNIT | |
| ROLLER WIDTH | 660 mm |
| 660 mm | |
| WINDING WIDTH | 550 mm |
| 550 mm | |
| WINDING MOTOR | DC 1/2 HP |
| DC 1/2 HP | |
| MACHINE DIMENSION | 400×120×380 cm |
| 400×120×380 cm | |
