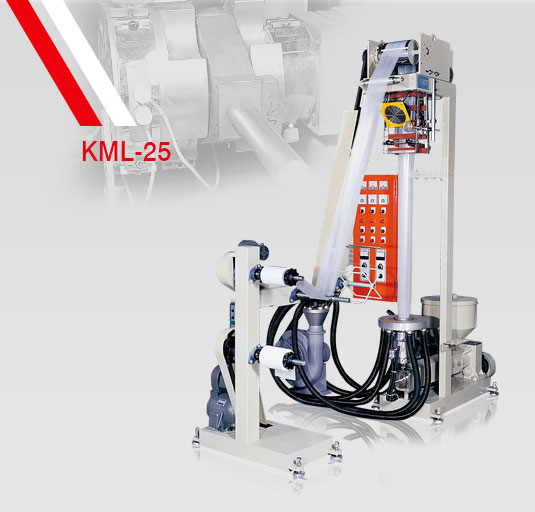

LDPE/LLDPE HIGH SPEED PLASTIC INFLATION MACHINE
- Model:
- KML-25
Detail Specifications / Descriptions
| MODEL | KML-25 |
|---|---|
| KML-25 | |
| SUITABLE MATERIAL | LDPE/LLDPE |
| LDPE/LLDPE | |
| FILM THICKNESS | 0.015-0.10 mm |
| 0.015-0.10 mm | |
| FILM WIDTH RANGE | 150 mm |
| 150 mm | |
| FILM OUTPUT | 5-15 kgs/hr |
| 5-15 kgs/hr | |
| EXTRUDER UNIT | |
| SCREW DIAMETER/TYPE | Ø 25mm |
| Ø 25mm | |
| SCREW L/D RATIO | 26:1 |
| 26:1 | |
| HEATING CAPACITY | 3.6 kw |
| 3.6 kw | |
| AUTO THERMO CONTROL | 2 zone |
| 2 zone | |
| BARREL COOLING FAN | |
| DRIVING MOTOR | AC 3 HP + Inverter |
| AC 3 HP + Inverter | |
| DIE UNIT | |
| DIE DIAMETER | Ø40 mm |
| Ø40 mm | |
| AIR RING DIAMETER | Ø100 mm |
| Ø100 mm | |
| HEATING CAPACITY | 1.6 kw |
| 1.6 kw | |
| AUTO THERMO CONTROL | 1 zone |
| 1 zone | |
| COOLING BLOWER | 1 HP |
| 1 HP | |
| TAKE-UP UNIT | |
| TAKE-UP ROLLER | 200 mm |
| 200 mm | |
| EFFECTIVE WIDTH | 150 mm |
| 150 mm | |
| TAKE-UP MOTOR | AC 1/2 HP |
| AC 1/2 HP | |
| TAKE-UP SPEED | 45 m/min |
| 45 m/min | |
| ELEVATING MOTOR | |
| WINDING UNIT | |
| ROLLER WIDTH | 200 mm |
| 200 mm | |
| WINDING WIDTH | 150 mm |
| 150 mm | |
| WINDING MOTOR | 12 kgs-cm |
| 12 kgs-cm | |
| MACHINE DIMENSION | 150×70×250 cm |
| 150×70×250 cm | |
