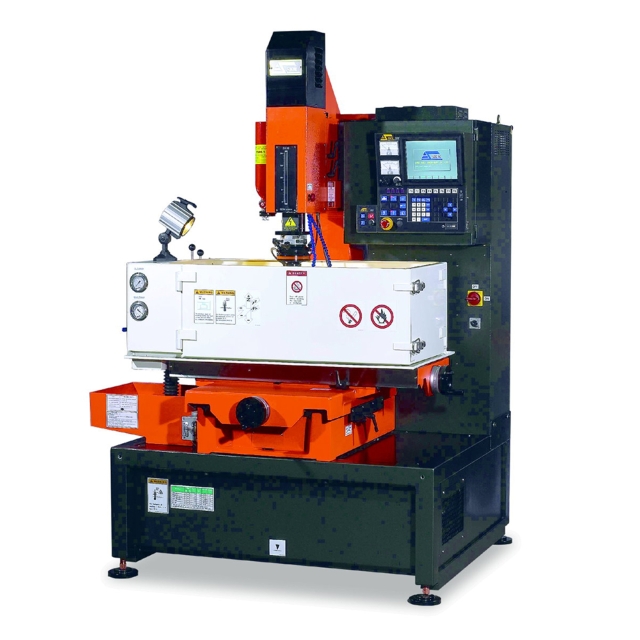

T50 ZNC
- Model:
- T50 ZNC
Detail Specifications / Descriptions
‧The Z axis utilizes AC servo motor.
‧N C programmable functions
‧The Circle Angle of Sparking is lower than 0.02mm
‧N C programmable functions
‧The Circle Angle of Sparking is lower than 0.02mm
‧The best surface roughness (Ra) is better than 0.1 µm.
‧High speed and long distance jumping.
‧Special rib shape machining function.
‧High speed and long distance jumping.
‧Special rib shape machining function.
Specification | T50 |
---|---|
X,Y-travel | 300 x 200 mm |
Z-travel | 200+190 mm (option) |
Table dimension | 600 x 360 mm |
Work table dimension | 700x460x270 mm |
Maximum table-quill distance | 490 mm |
Maximum electrode weight | 30 kgs |
Maximum table loading | 800 kgs |
Dielectric tank capacity | 200 Liter |
Filters | 2 pcs |
Machine weight | 1400 kgs |
Machine Height | 2240 mm |
Nominal Current | 30A/5A.45A/5A.60A/5A |
lnput voltage | 220 / 380 / 415 / 440 V |
Connected rating | 4KVA / 5.5KVA / 7KVA |
Maximum stock removal rate | 200/300/400 mm3/min |
Bst surface roughness | Ra≤0.1μm |
Best electrode wearing rate | <0.2% (specific equip<0.1%) |
