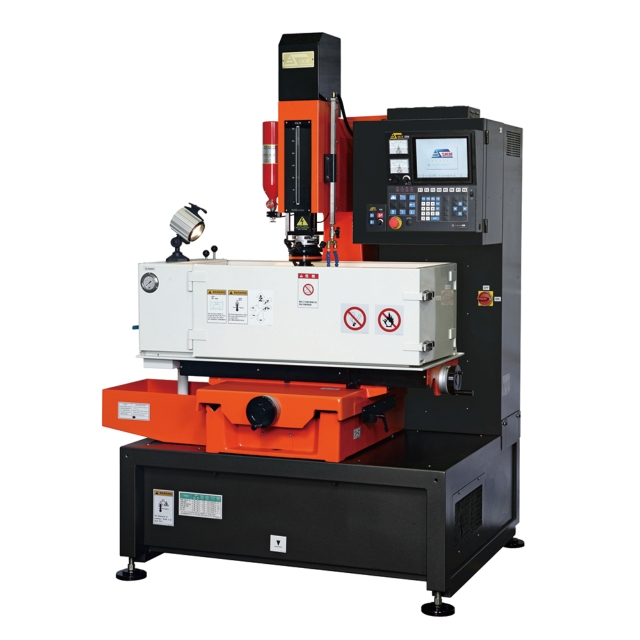

T60 ZNC

T60 ZNC

Model:
T60 ZNC

Detail Specifications / Descriptions


Specification T60
X,Y-travel400 x 300 mm
Z-travel300 mm
Table dimension660 x 380 mm
Work table dimension1040x580x320 mm
Maximum table-quill distance520 mm
Maximum electrode weight40 kgs
Maximum table loading1000 kgs
Dielectric tank capacity400 Liter
Filters2 pcs
Machine weight1650 kgs
Machine Height2260 mm
Nominal Current30A/5A.45A/5A.60A/5A
lnput voltage220 / 380 / 415 / 440 V
Connected rating4KVA / 5.5KVA / 7KVA
Maximum stock removal rate200/300/400 mm3/min
Bst surface roughnessRa≤0.1μm
Best electrode wearing rate<0.2% (specific equip<0.1%)

T60 ZNC
