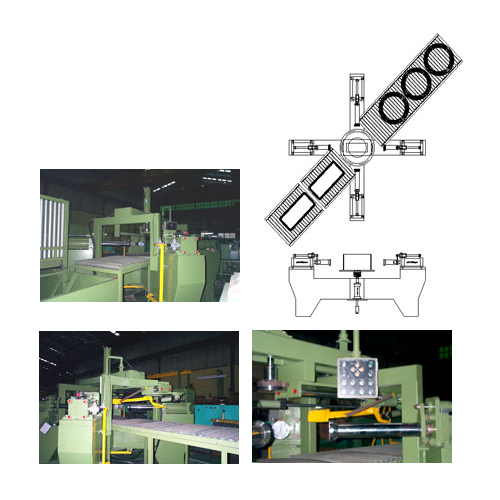

Core Oil Pressure Shaper
- Model:
- MS-120T
Detail Specifications / Descriptions
* This machine is the transformer volume ferrite core fast takes shape in view of mini-transformer 500KVA below, reduces the traditional type sole flowing tubing head pressure cylinder work to be slow also must to tie up the multi- strip to tie the steel belt to create the material to anticipate a man-hour of waste.
* Specification:
Core Max. O. D.: O750mm
Core Mini. O. D.: O250mm
Core Max. High : H300mm
Core Mini. High: H100mm
Oil Pressure Pump: Φ220V 50 / 60Hz 25HP
Oil Pressure Cylinder: Push 35,000Kg Pull 28,000Kg
Power: Φ220V 50/60Hz 100A
Machine Size: 4000W x 7000L x 3800H
