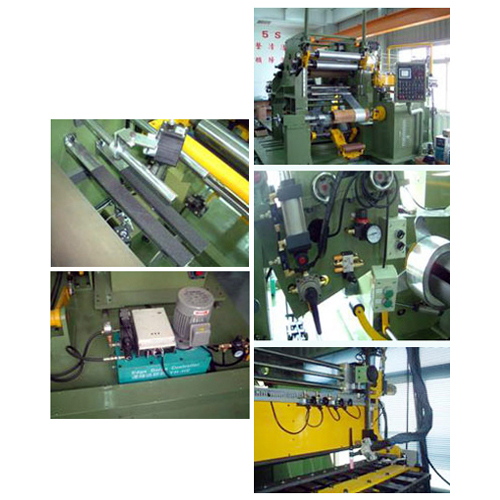

Foil Winding Machine
- Model:
- LV-600W
Detail Specifications / Descriptions
* This machine is designed for the small size transformers under 69KVA. While rolling the copper (Aluminum) foil. The machine is fast with the whole & flat piece in and with ease. It can be operated by single person.
* Special Note:
While rolling, it can be set by the auto alignment or manual alignment
While rolling, it automatically removes the fluffy stuff on both ends
The slip conductor outward line cuts the edge automatically
The slip conductor outward line has multi-section of auto-soldering
* Specification:
(Slip Conductor)
Cu (Aluminum) 2 rolls
The thickness: 0.5t ~ 2.3tmm
The width: 100mm ~ 600mm
The inner dia. ∮300mm ± 10mm
The outer dia. Max ∮800mm
The weight Max600kgs
(Press board)
press board 2 rolls
The thickness: 0.38t ~ 1.4tmm
The width: 100mm ~ 650mm
The inner dia. ∮75mm ± 5mm
The outer dia. Max ∮600mm
The weight Max 60kgs
Main coil speed: 0 ~ 6rpm
Motor: 15Hp × 6
