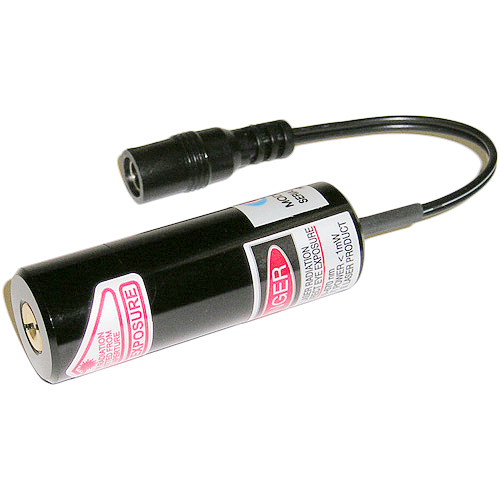

Point Mark-KML-2000P-20 series
- Model:
- KML-2501P-20 / KML-2502P-20 / KML-2503P-20
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
波長Wavelength:630 ~ 650 nm 可見紅光(RED)
輸出功率Output Power:1 mW / 2 mW / 3 mW
標點直徑Point Dia:1 mW / 2 mW / 3 mW
輸入電壓Input Voltage:DC 4.5 ~ 8V
AC 90 ~ 260V to DC 5V Adaptor (PS1)/PS3/PS5
-DC 24V
操作溫度Operating Temp.:– 10 ~ 50 °C
安全等級Safety Class:Class Ⅱ / Class Ⅲa
使用壽命Lifetimes:>15,000 小時 (hr)
外觀尺寸Dimensions:D 20 X L 60 (mm)-D20 X L70 (mm)
重量Weight:35 ± 5 公克 ( g )-45 ± 5 公克 ( g )
● 鋼材鑽孔定位 Steel drillong location
● 木材打釘加工 Fixing timber processing
● 鈕扣鉚合加工 Buttons riveting process
● PCB加工 PCB processing
● 光軸校準 Axis calibration
● 基準點定位 Reference point for processing
特殊規格歡迎來電洽詢Special specifications please contact us
