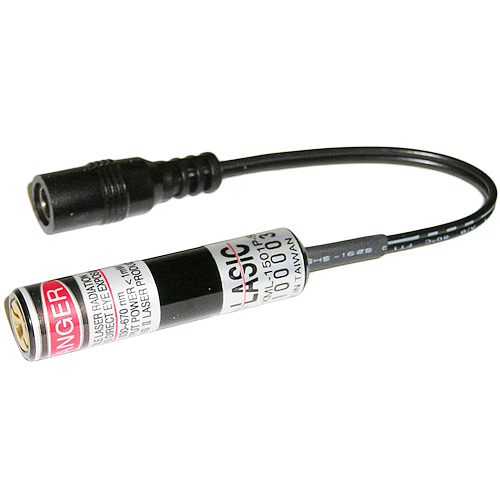

Point Mark-KML-1000P-50 series
- Model:
- KML-1501P-50
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
波長Wavelength:630 ~ 650 nm 可見紅光(RED)
輸出功率Output Power:1 mW
標點直徑Point Dia:≦3 mm
固定焦距 (Focus Fixed)
輸入電壓Input Voltage:DC 4.5 ~ 8V
AC 90 ~ 260V to DC 5V Adaptor (PS1) or PS3 or PS5
操作溫度Operating Temp.:– 10 ~ 50 °C
安全等級Safety Class:Class Ⅱ
使用壽命Lifetimes:>10,000 小時 (hr)
外觀尺寸Dimensions:D 12 X L 50 (mm)
重量Weight:12 ± 2 公克 ( g )
● 鋼材鑽孔定位 Steel drillong location
● 木材打釘加工 Fixing timber processing
● 鈕扣鉚合加工 Buttons riveting process
● PCB加工 PCB processing
● 光軸校準 Axis calibration
● 基準點定位 Reference point for processing
特殊規格歡迎來電洽詢Special specifications please contact us
