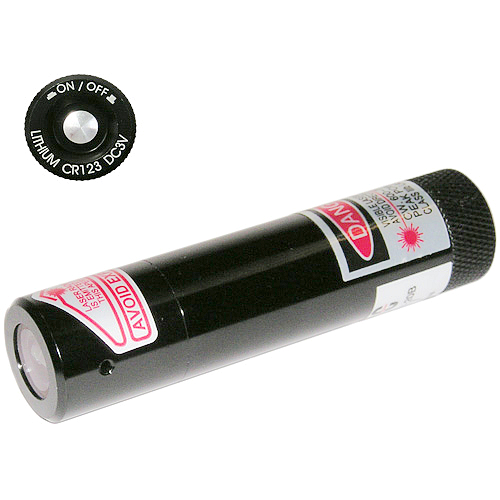

Linear Mark-KML-2000-20B series

波 長(Wavelength): 630 ~ 650 nm 可見紅光(RED)
輸出功率(Output Power): 3 mW / 5 mW / 8 mW
投射距離: < 1M / < 2M / < 3M
標線長度(Line Length): 1M / 2M / 3M
標線寬度(line Width):0.5mm / 1.0mm / 1.5mm (固定焦距Focus Fixed)
輸入電壓(Input Voltage): 乾電池LITHIUM CR 123 DC3 V (Battery Only)

操作溫度(Operating Temp.): – 10 ~ 50 °C
安全等級(Safety Class): Class Ⅲa / Class Ⅲa / Class Ⅲb
使用壽命(Lifetimes): >18,000 小時 (hr)
外觀尺寸(Dimensions): D 20 X L 82(mm)
重 量(Weight): 41 ± 5 公克 ( g ), 57 ± 5 公克 ( g )
適用行業(Applications):
-焊接加工 Welding process
-橡膠加工 Rubber processing
-鐵材加工 Metal working
-印刷品加工 Print processing
-木材加工 Wood working
-PCB加工 PCB processing
-布料加工 Fabric processing
-自行車加工 Bicycle processing
-輪胎成型加工 Tire Building
-分條加工 Slitting processing
-高爾夫球桿組裝 Golf assembly
