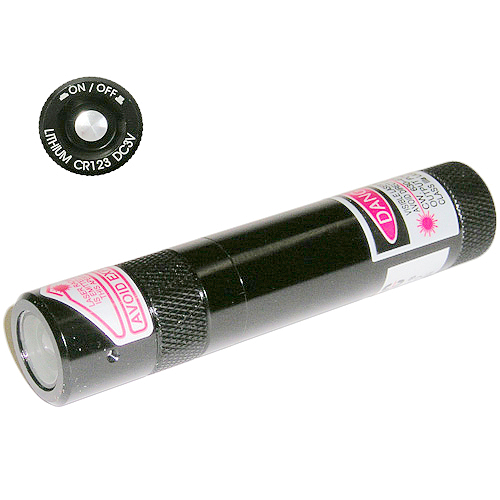

Linear Mark-KML-3000-B series
- Model:
- KML-3503-B / KML-3505-B / KML-3510-B
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
波 長(Wavelength): 630 ~ 650 nm 可見紅光(RED)
輸出功率(Output Power): 3 mW / 5 mW / 10 mW
投射距離: < 1M / < 2M / < 3M
標線長度(Line Length): 1M / 2M / 3M
標線寬度(line Width):<0.5mm / <1.0mm / <1.5mm (可調焦距Focus Adjustable)
輸入電壓(Input Voltage): 乾電池LITHIUM CR123DC3 V(Battery Only)
操作溫度(Operating Temp.): – 10 ~ 50 °C
安全等級(Safety Class): Class Ⅲa /Class Ⅲa / Class Ⅲb
使用壽命(Lifetimes): >18,000 小時 (hr)
外觀尺寸(Dimensions): D 20 X L 96 (mm)
重 量(Weight): 53 ± 5 公克 ( g ), 70 ± 5 公克 ( g )
適用行業(Applications):
-焊接加工 Welding process
-橡膠加工 Rubber processing
-鐵材加工 Metal working
-印刷品加工 Print processing
-木材加工 Wood working
-PCB加工 PCB processing
-布料加工 Fabric processing
-自行車加工 Bicycle processing
-輪胎成型加工 Tire Building
-分條加工 Slitting processing
-高爾夫球桿組裝 Golf assembly
