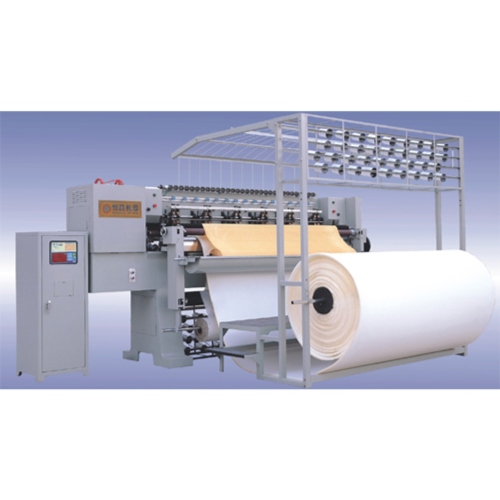

Multi-needle Shuttleless Quilting Machine
- Model:
- HC-94-3JB
Detail Specifications / Descriptions
Special function:
● Function of automatic stop on breaking of thread and needle raising.
● Bottom thread cutting and fabric rolling are the fastest in the world with production rate of 20% to 50% higher than any other quilting machines in the nation.
● Bottom thread uses common mixed cotton thread for all patterns.
● Very little deformation when quilt on between thick and thin fabric.
● Uses high speed aero dynamic bottom thread cutting machine architecture, and therefore, can produce and uniform and threadless edge.
● Both X and Y axes are driven by high power Panasonic servo motors that are capable of quilting fabric materials at 50mm in thickness.
● Nation's first built pattern in pattern quilting machine. (This machine is also capable of quilting single independent, all round 360 degree and 180 degree patterns).
Multi-needle shuttleless quilting machine specification:
Function\Spec\ Type: HC-94-3JB(Single independent patterns)
Size(Length x width xHeight): 4800x1220x2000(mm)
Weight: 3500kg
Quilt width: 2450mm
RPM: 750~950
Production speed: 65~180m/h
Needle type: 180/24
Needle arrangement: (50.8, 76.2, 127) (76.2, 76.2, 152.4)
Max. horizontal movement: 250mm
Needle space: 25.4mm
Voltage: 380V/220V 50Hz/60Hz
Max. stitch size: 2~7mm
Power: 3.5KW
Quilting thickness: ≤50mm
