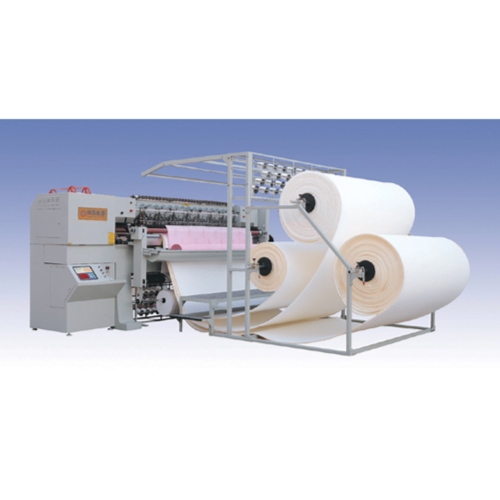

Multi-needle Shuttle Less Quilting Machine
- Model:
- HC-94-3JA
Detail Specifications / Descriptions
Special function:
● Function of automatic stop on breaking of thread and needle raising.
●Bottom thread cutting and fabric rolling are the fastest in the world with production rate of 20% to 50% higher than any other quilting machines in the nation.
● Bottom stitch uses common mixed cotton thread for all patterns.
● Very little deformation when quilt on between thick and thin fabric.
● Uses high speed aero dynamic bottom thread cutting machine architecture, and therefore, can produce an uniform and threadless edge.
● Both X and Y axes are driven by high power Panasonic servo motors that are capable of quilting fabric materials at 50mm in thickness.
● Extended horizontal movement (moving distance of 450mm), can produce super large patterns.
● Spacious look with the single unit design.
● Nation' s first built multi independent quilting machine.
● (This machine is also capable of quilting single independent, all round 360 degree and 180 degree patterns.)
Function\Spec\ Type: HC-94-3JA (Multi- independent patterns)
Size( length x width x height): 5200*1220*2000(mm)
Weight: 4000kg
Quilt width: 2450mm
RPM: 750~950
Production speed: 65~180m/h
Needle type: 180/24
Needle arrangement: (50.8, 76.2, 127)
(76.2, 76.2, 152.4)
Max. horizontal movement: 450mm
Needle space: 25.4mm
Voltage: 380V 50Hz/220V 60Hz
Max. stitch size: 2~7mm
Power: 4.5KW
Quilting thickness: ≤50mm
