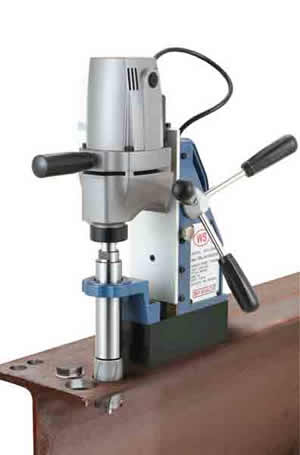

WS-3500M Portable Magnetic Drilling Machine, Magnetic Core Drill
- Model:
- WS-3500M
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
.MAGNETIC DRILLING MACHINES
.Drilling Machine WS3500M
.WS-3500M Portable Magnetic Drilling Machine
.Brand : WS (Wind Speed)
.Model: WS-3500M (Manual Feed)
.Hole Capacity: 35mm (for 12-35mm cutter and up to 50mm thickness plate )
.Motor Rated Power Consumption: 1100W ( 5 Ampere)
.No-Load Speed: 780 rpm
.Magnet Adhesion: 15680 N /1600 kgf
.Magnet Dimensions: 186mm x 86mm x 56mm
.Weight: 14 kg
.A manual feed, portable magnetic drilling machine.
.Double coil magnetic base is an important design for safety which is able to avoid immediately danger when one coil burning down.
.Arbor support bracket with roller bearing design guarantee main shaft stability and reduce abrasion that not only avoids motor and main shaft vibration but extends the service life of cutter.
Features:
.Double coil magnetic base design to increase safety.
.Less motor and main shaft vibration.
.Long service life of cutter.
