WS-6025MT Magnetic Drilling machine / Magnetic Core Drill
- Model:
- WS-6025MT
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
MAGNETIC DRILLING MACHINES

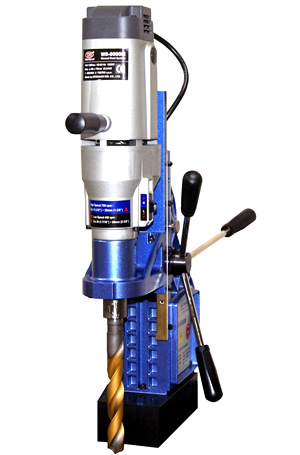

.WS-6025MT Portable Magnetic Drilling Machine
.Brand : WS (Wind Speed)
.Model: WS-6025MT (Manual Feed)
.Hole Capacity: 60mm (for 12-60mm cutter and up to 50mm thickness plate )
.Motor Rated Power Consumption: 2050W ( 10 Ampere)
.No-Load Speed: 750 rpm / 450 rpm
.Magnet Adhesion: 22540 N / 2300 kgf
.Magnet Dimensions: 210mm x 100mm x 64mm
.Weight: 26 kg
A manual feed, portable magnetic drilling machine.
.WS-6025MT provides high/low speed option for fitting different drilling requirements.
.Double coil magnetic base is an important design for safety which is able to avoid immediately danger when one coil burning down.
.Arbor support bracket design guarantee main shaft stability and reduce abrasion that not only avoids motor and main shaft vibration but extends the service life of cutter.
FEATURES:
.Support morse taper 3
.High/low speed for fitting different drilling requirements.
.Double coil magnetic base design to increase safety.
.Less motor and main shaft vibration.
.Long service life of cutter.
