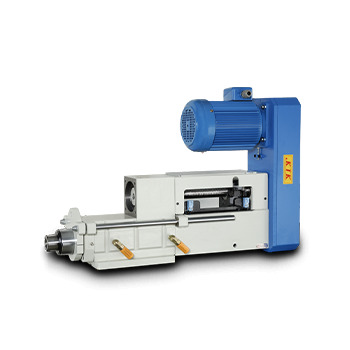

NC Self-Feeder Drilling Unit

Model	NC-4150H	NC-5100H	NC-6150H	NC-7200H	NC-9200H
Capacity	6mm	10mm	16mm	20mm	35mm
Spindle Stroke	130mm	80mm	130mm	180mm	130mm
Spindle Taper	JT2 / ER16	JT6 / ER20	MT2 / ER25	MT3 / ER32	MT4 / ER40
Spindle Speed	3000-4000-5000	1000-2000-3000	1000-1500-2000	1-speed 500-1500
Spindle Motor	0.75kw	0.75kw	1.5kw	1.5kw	2.25kw
Ball Screw Motor	0.4kw	0.75kw	750w	1.5kw	1.5kw
Weight	30kgs	46kgs	79kgs	128kgs	150kgs
