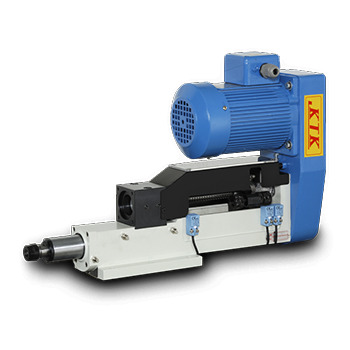

NC Self-Feeder Drilling Unit
- Model:
- NC-4150H
Detail Specifications / Descriptions
Model | NC-4150H | NC-5100H | NC-6150H | NC-7200H | NC-9200H |
---|---|---|---|---|---|
Capacity | 6mm | 10mm | 16mm | 20mm | 35mm |
Spindle Stroke | 130mm | 80mm | 130mm | 180mm | 130mm |
Spindle Taper | JT2 / ER16 | JT6 / ER20 | MT2 / ER25 | MT3 / ER32 | MT4 / ER40 |
Spindle Speed | 3000-4000-5000 | 1000-2000-3000 | 1000-1500-2000 | 1-speed 500-1500 | |
Spindle Motor | 0.75kw | 0.75kw | 1.5kw | 1.5kw | 2.25kw |
Ball Screw Motor | 0.4kw | 0.75kw | 750w | 1.5kw | 1.5kw |
Weight | 30kgs | 46kgs | 79kgs | 128kgs | 150kgs |
