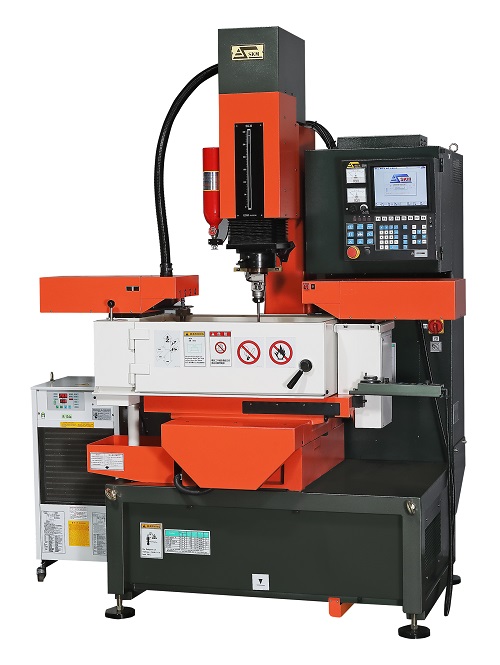

S50 (S320)

S50 (S320)

Model:
S50

Detail Specifications / Descriptions

Specification S50(S320)
X,Y-travel 300 x 200 mm/td>
Z-travel 300 mm
Table dimension 600 x 360 mm
Work table dimension 720x460x260 mm
Maximum table-quill distance 490 mm
Maximum electrode weight 30 kgs
Maximum table loading 600 kgs
Dielectric tank capacity 200 Liter
Filters 2 pcs
Machine weight 1650 kgs
Machine Height 2240 mm
Nominal Current 30A/5A. 45A/5A. 60A/5A
lnput voltage 220 / 380 / 415 / 440 V
Connected rating 4 KVA / 5.5 KVA / 7 KVA
Maximum stock removal rate 200 / 300 / 400 mm^3/min
Bst surface roughness Ra≤0.1μm
Best electrode wearing rate <0.2% (specific equip<0.1%)
