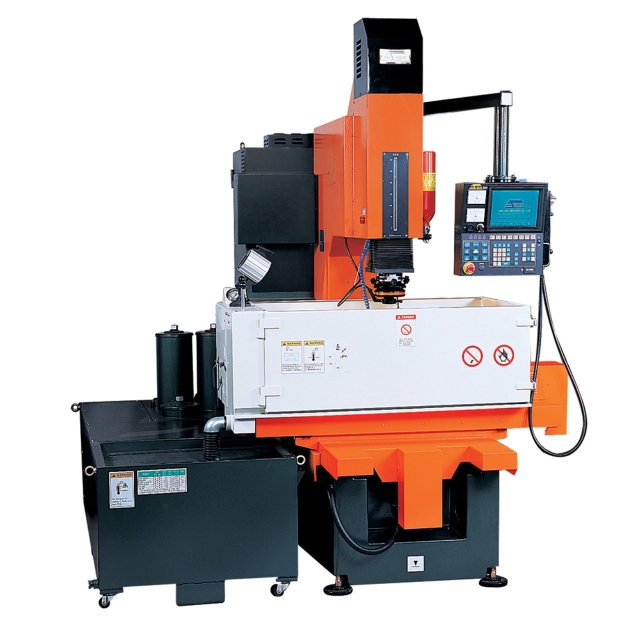

S90 (S540)
Detail Specifications / Descriptions
The X. Y& Z axis utilizes AC servo motor.
Multi-cavities machining, ORBIT-CUT machining & Helix machining.
A.T.C. (Automatic Tool change) & C-axis machining available.
The Circle Angle of Sparking is lower than 0.02mm.
Multi-cavities machining, ORBIT-CUT machining & Helix machining.
A.T.C. (Automatic Tool change) & C-axis machining available.
The Circle Angle of Sparking is lower than 0.02mm.
The best surface roughness (Ra) is better than 0.1 µm.
Multi-side ORBIT-CUT machining for X, Y & Z axis
High speed and long distance jumping.
Special Rib shape machining function.
Multi-side ORBIT-CUT machining for X, Y & Z axis
High speed and long distance jumping.
Special Rib shape machining function.
Specification | S90(S540) |
---|---|
X,Y-travel | 500 x 400 mm |
Z-travel | 300+(290) mm |
Table dimension | 820 x 500 mm |
Work table dimension | 1100x700x350 mm |
Maximum table-quill distance | 700 mm |
Maximum electrode weight | 60 kgs |
Maximum table loading | 1200 kgs |
Dielectric tank capacity | 400 Liter |
Filters | 3 pcs |
Machine weight | 2500+210 kgs |
Machine Height | 2600~2330 mm |
Nominal Current | 60A/5A . 90A/5A . 120A/5A |
lnput voltage | 220 / 380 / 415 / 440 V |
Connected rating | 7 KVA / 10 KVA / 13 KVA |
Maximum stock removal rate | 400 / 600 / 800 mm^3/min |
Bst surface roughness | Ra≤0.1μm |
Best electrode wearing rate | <0.2% (specific equip<0.1%) |
