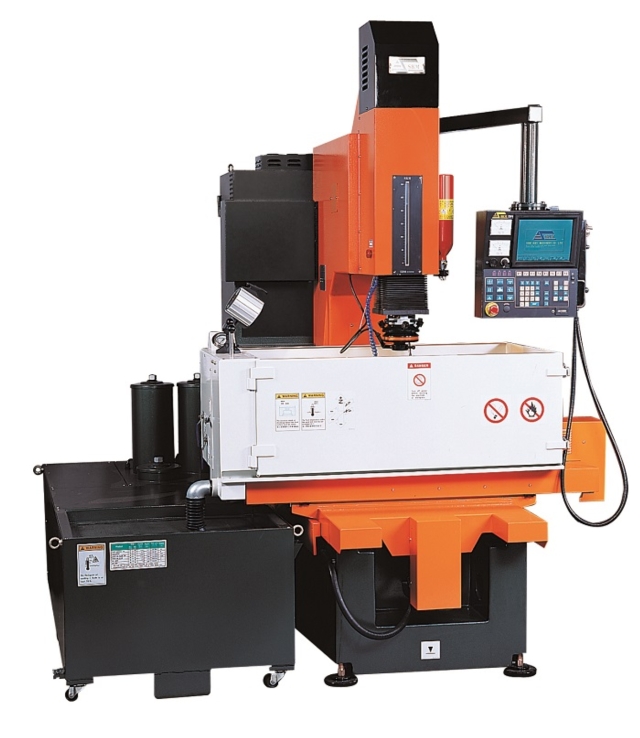

P90

P90

Model:
P90

Detail Specifications / Descriptions


Specification P90
X,Y-travel500 x 400mm
Z-travel300+(290)mm
Table dimension760 x 440 mm
Work table dimension1050x660x360 mm
Maximum table-quill distance680 mm
Maximum electrode weight60 kgs
Maximum table loading1200 kgs
Dielectric tank capacity400 Liter
Filters3 pcs
Machine weight2550+520 kgs
Machine Height2450~2740 mm
Nominal Current30A/5A . 45A/5A . 60A/5A
lnput voltage220 / 380 / 415 / 440 V
Connected rating4 KVA / 5.5 KVA / 7 KVA
Maximum stock removal rate200 / 300 / 400 mm^3/min
Bst surface roughnessRa≤0.1μm
Best electrode wearing rate<0.2% (特殊配備可達<0.1%)

P90
