![PM750 PM750](https://www.cens.com/cens/supplier/3745/product/174258/BIG.jpg?xxx=1723618778297)

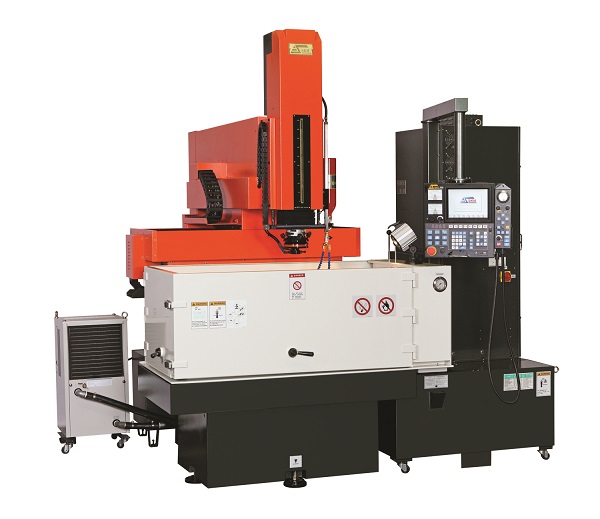

PM750
- Model:
- PM750
Detail Specifications / Descriptions
Specification | PM750 |
---|---|
X,Y-travel | 700 x 500 mm |
Z-travel | 450mm |
Table dimension | 780 x 460 mm |
Work table dimension | 1200x750x400 mm |
Maximum table-quill distance | 580 mm |
Maximum electrode weight | 60 kgs |
Maximum table loading | 5200 kgs |
Dielectric tank capacity | 400 Liter |
Filters | 3 pcs |
Machine weight | 3200+950 kgs |
Machine Height | 2400 mm |
Nominal Current | 30A/5A . 45A/5A . 60A/5A |
lnput voltage | 220 / 380 / 415 / 440 V |
Connected rating | 4 KVA / 5.5 KVA / 7 KVA |
Maximum stock removal rate | 200 / 300 / 400 mm^3/min |
Bst surface roughness | Ra≤0.1μm |
Best electrode wearing rate | <0.2% (specific equip<0.1%) |
![PM750 PM750](https://www.cens.com/cens/supplier/3745/product/174258/PM750場地面積.jpg)
