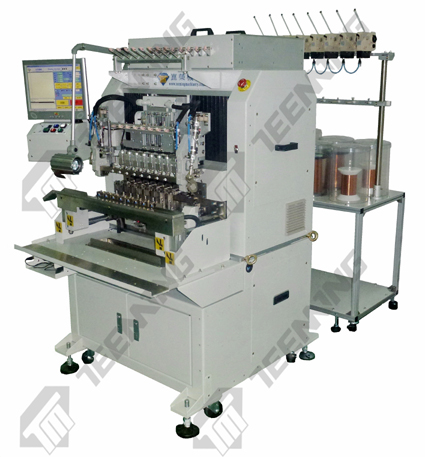

TM-8008 8 Spindle AUTOMATIC WINDING MACHINE
- Model:
- TM-8008
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Technical Specifications:
Description: 8 SPINDLE WINDING MACHINE
Number of spindles: 8
Control system: AC Servo Motor
Data storage: 1GB CF Card
Tensioner: Mechanical
Spindle Pitch: 80mm
Max. Bobbin Diagonal: 60 mm Bobbin width under 55mm
Max. Width of winding: 95 mm
Winding Speed: 9000 RPM
Winding Direction: CW/CCW
Spindle Stop Accuracy: +/-0.225 degrees
(AWG/mm) Wire Range: AWG48~24/0.03~0.5mm
Maximum Travel Distance X: 100 mm
Maximum Travel Distance Y: 100 mm
Maximum Travel Distance Z: 80 mm
X\Y\Z Axes Increment( Step ): 0.02mm (mechanical ),0.001 mm (program )
Wire Wrapping Angle: 0°/90°
Maximum Wrapping Speed: 200mm/sec
Power source: 3¢ AC 220V, 50/60 HZ
Consumed power: 4KW
Air Pressure Supply Required: 5-6 KGS/cm2(=0.5-0.6MPA)
Machine Dimension (Include screen ): 175(L)X 125(W)x 155 (H)cm
Machine Dimension (Include screen and tensioner case): 175(L)x235(W)x 160(H)cm
Machine weight: 650KGS
Options:
1. Wire Twister(Wire diameter under 0.05mm)
2.Automatic Load & Unloading(Bobbin width under 22mm)
3.Cutter (Wire Diameter: Over 0.28mm)
4.Knife (Wire Diameter: Over 0.15mm)
5.Electrical tensioner
Remarks:
Spindle:8
Maximum twisting length: 300mm
Number of Wire Strands:1.3.5.7.9.......Programmable
Maximum twisting speed: 5000 RPM
