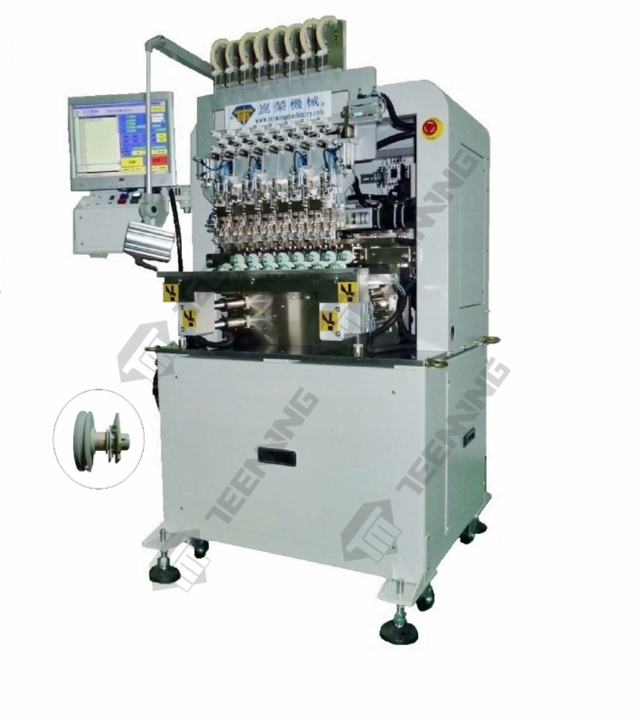

TM-5008-TP 8 SPINDLE WINDING + TAPING MACHINE
- Model:
- TM-5008-TP
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Technical Specifications:
Number of spindles: 8
Control system: AC Servo Motor
Data storage: 1GB CF Card
Tensioner: Mechanical
Spindle Pitch: 50mm
Max. Bobbin Diagonal: 40 mm Bobbin width under 32mm
Max. Width of winding: 85 mm
Winding Speed: 12000 RPM/18000RPM
Winding Direction: CW/CCW
Spindle Stop Accuracy: +/-0.225 degrees
(AWG/mm) Wire Range: AWG48~28/0.03~0.3mm
Maximum Travel Distance X: 90 mm
Maximum Travel Distance Y: 65 mm
Maximum Travel Distance Z: 50 mm
X\Y\Z Axes Increment( Step ): 0.02mm (mechanical ),0.001 mm (program )
Wire Wrapping Angle: :0˚ /90˚/-30 ˚and other angle(-30˚~90˚)
Maximum Wrapping Speed: 200mm/sec
Power source: 1¢ AC 220V, 50/60 HZ
Consumed power: 3KW
Air Pressure Supply Required: 5-6 KGS/cm2
Tape O.D.:Max.130mm
Tape I.D.:76mm
Tape Width:Min.2mm Max.25mm
Machine Dimension (Not Include screen ): 210(L)X 100(W)x 160 (H)cm
Machine weight: 510KGS
Options:
1.Wire Twister(Wire diameter under 0.05mm)
2.Automatic Load & Unloading(Bobbin width under 22mm)
3.Knife (Wire Diameter: Over 0.15mm)
4.Electrical tensioner Remarks:
Spindle:8
Maximum twisting length: 300mm
Number of Wire Strands:1.3.5.7.9.......Programmable
Maximum twisting speed: 5000 RPM
