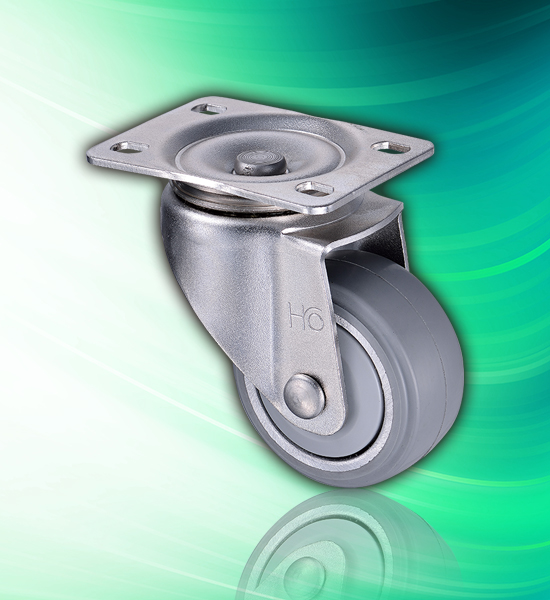

75mm Stainless Rubber Small heavy Duty Industrial Casters
Hot- Model:
- EB075SW-GA-#304
- Country of Origin:
- Taiwan
- Material:
- Elastic Rubber
Detail Specifications / Descriptions
Type: Swivel Caster
Wheel Diameter x Width: 3x1¼ inch (75x32 mm)
Height: 109 mm
Load Capacity: 200 kg
Bolt Hole Center: 53x71 mm
Plate Size: 75x92 mm
Bolt Hole: Φ10
Bearing: #6202 Single Ball Bearing
Fork Structure: #304 Stainless Steel
Eccentricity: 32 mm
Wheel Core: Aluminum Core
Weight: 0.825 kg
Others: Plastic Wheel Cover
1. Wheel: Elastic Rubber Wheel (gray), with the features of high elasticity, good load capacity and wear resistances.
2. Wheel Core: Aluminum Core, not easy to be rusted and also increases the durability and load capacity of caster.
3. Bearing: Stainless steel #6202 single ball bearing to improve the rolling.
4. Fork: Swivel fork with top plate. Use #304 stainless steels and integrally formed.
5. Plastic wheel covers to prevent the dust, water and other materials.
