Total Lock Brake 4

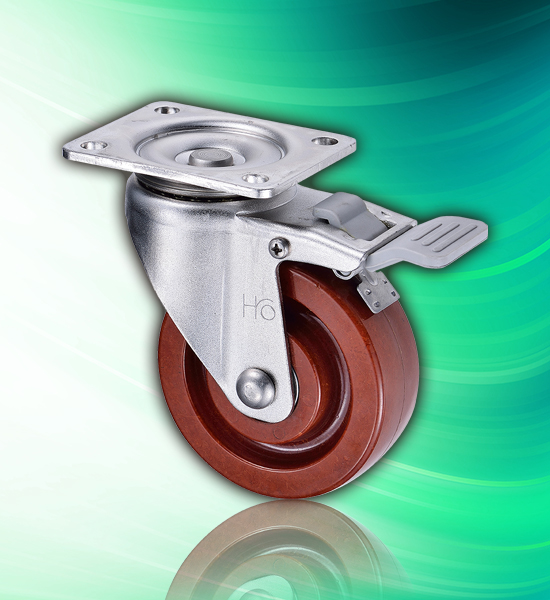

Total Lock Brake 4" Phenolic Industrial Waterproof Wheel Caster

Hot
Model:
EB100BF-PHP-#304
Country of Origin:
Taiwan
Material:
Phenolic Resin

Detail Specifications / Descriptions

Type: Front Total Lock Caster
Wheel Diameter x Width: 4x1¼ inch (100x32 mm)
Height: 134 mm
Load Capacity: 300 kg
Bolt Hole Center: 53x71 mm
Plate Size: 75x92 mm
Bolt Hole: Φ10
Bearing: #6201 Double Ball Bearings
Fork Structure: #304 Stainless Steel
Eccentricity: 32 mm
Weight: 0.997 kg

1. Wheel: Phenolic wheel filled with fabric and it provides the features of superior floor protection, and resists hard impacts, most chemicals and steam.
2. Bearing: Stainless steel #6201 double ball bearings to improve the rolling.
3. Fork: Front Total Lock with top plate. Use #304 stainless steels and integrally formed.
4. High temperature resistance: -20~+220℃.

Total Lock Brake 4
