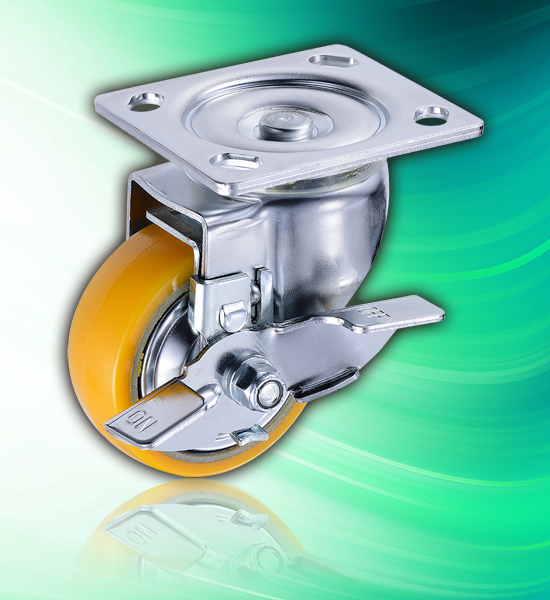

4 inch Heavy Duty Trolley Polyurethane Mold on Castors
Hot- Model:
- HO415BS-PUA
- Country of Origin:
- Taiwan
- Material:
- PU (Polyurethane)
Detail Specifications / Descriptions
Type: Side Wheel Brake Caster
Wheel Diameter x Width: 4x1½ inch (100x38 mm)
Height: 138 mm
Load Capacity: 350 kg
Bolt Hole Center: 70x85 mm
Plate Size: 105x115 mm
Bolt Hole: Φ12x20
Bearing: #6202 Double Ball Bearings
Fork Structure: Pressed Steel；Chrome Plated
Eccentricity: 42 mm
Wheel Core: Aluminum Core
Weight: 1.97 kg
Others: Steel Wheel Cover
1. Wheel: Casting Polyurethane wheel (yellow) which is resistant to hydrolysis, oil and less pollution to the ground.
2. Wheel Core: Aluminum Core, not easy to be rusted and also increases the durability and load capacity of caster.
3. Bearing: #6202 double ball bearings to enhance the rotation.
4. Fork: Side Wheel Brake with top plate. Pressed steel and integrally formed. Chrome plated.
5. Steel wheel cover to prevent the dust, water and other materials.
