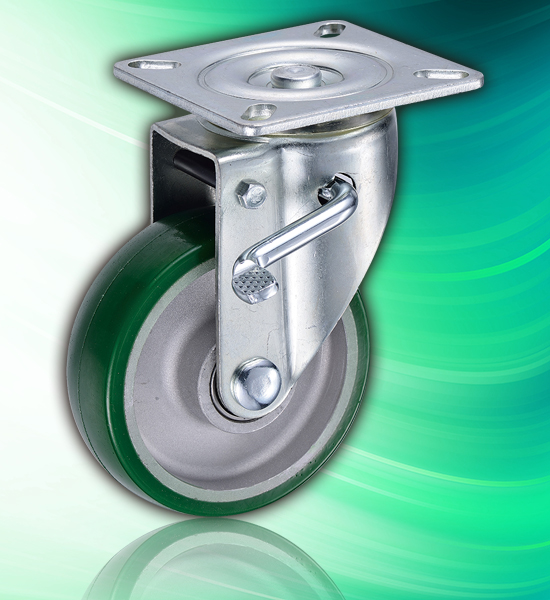

Side Lock Brake Aluminum Core 5inch PU Caster without Stem
Hot- Model:
- BX125BS-PUA
- Country of Origin:
- Taiwan
- Material:
- PU (Polyurethane)
Detail Specifications / Descriptions
Type: Side Total Lock Caster
Wheel Diameter x Width: 5x1½ inch (125x38 mm)
Height: 178 mm
Load Capacity: 350 kg
Bolt Hole Center: 85x85 mm
Plate Size: 110x110 mm
Bolt Hole: Φ11x21
Bearing: #6202 Double Ball Bearings
Fork Structure: Pressed Steel；Zinc Plated
Eccentricity: 42 mm
Wheel Core: Aluminum Core
Weight: 2.095 kg
1. Wheel: Casting Polyurethane wheel (green) which is resistant to hydrolysis, oil and less pollution to the ground.
2. Wheel Core: Aluminum Core, not easy to be rusted and also increases the durability and load capacity of caster.
3. Bearing: #6202 double ball bearings to enhance the rotation.
4. Fork: Side Iron Bar brake pedal, Total Lock. Pressed steel and integrally formed. Zinc plated.
