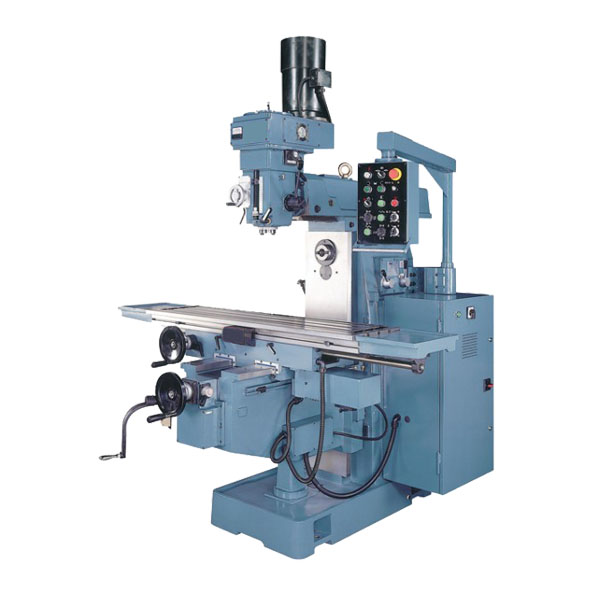

Vertical & Horizontal Mill(Taiwan Made)
Hot- Model:
- MW0800-041
- Country of Origin:
- Taiwan
- Material:
- To be advised
- Color:
- Final detail to be provided on formal quotation sheet
Detail Specifications / Descriptions
Features
Max. Table Load: 450 kgs
X/Y Axes Ball Screw
X/Y Axes Servo Motor
Steel Telescopic on Y Axis
Description
Turret Type Inverter Variable Speed Head of milling machine
Solid construction: meehanite cast iron
Manufactured in Taiwan to perform efficiently
Specification
ITEMS
MW0800-041
Table
Working Surface
1270x 370 mm (1470x370 OPT.)
T Slot (WxNo.xPitch)
18x 3x 80
Travel
XxYxZ-Manual
930x 520x 440 mm
XxYxZ-Auto
920x 500x 420 mm
Feed
Long./Min.
30-3000 Vari.
Cross/Min.
30-3000 Vari.
Vertical/Min.
960 (30-1150 Vari. OPT.)
Spindle
Spindle Nose
N.S.T. 40
Steps
Inverter Variable
Spindle Speed (RPM)
60-3600
Swiveling Angle
45°(R&L)
Quill Travel
140
Quill Feeds/Rev.
0.035/0.07/0.14
Spindle Nose to Table
85-505mm
Spindle Center to Column
185-785mm
Cross Travel of RAM
600
Horizontal Spindle
Spindle Nose
N.S.T 40
Spindle Speed (RPM)
65-1500
Steps
9
Spindle to Botton of RAM
175
Spindle Center to Table
-25~395
Motor
Vertical Spindle
5HP-4P Inverter
Horizontal Spindle
5HP-4P
Feed X,Y Axes
AC Servo 750W
Feed Z Axes
1HP-12P (AC Servo 850W OPT.)
Coolant Pump
1/8HP-2P
Size
Machine (LxWxH)
2070x 1900x 2600 mm
N.W.
2650Kgs
Standard Accessories :
Coolant equipment
X,Y axis servo motor
X,Y axis ball screw
Vertical head auto lubrication pump
Slide way auto lubrication pump
Optional Function :
Vertical head attachment
Z axis servo motor
X axis travel 1120mm
The product pictures are for your reference only: final spec & accessories based on formal quotation
