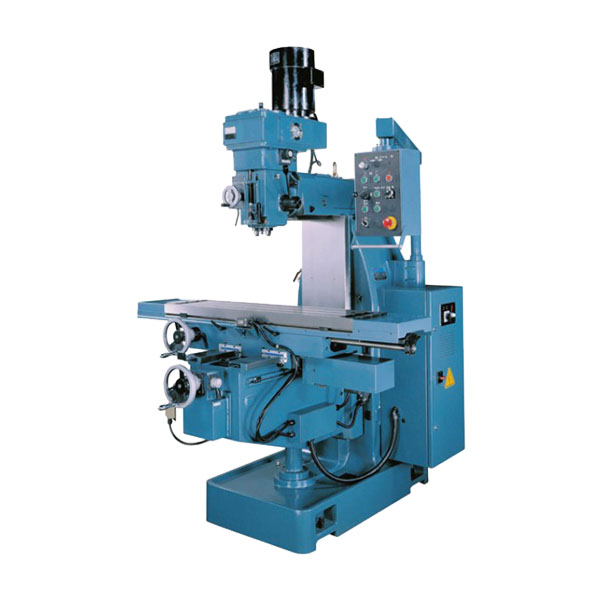

3 Axes Vertical Milling Machine

3 Axes Vertical Milling Machine

Hot
Model:
MW0800-040
Country of Origin:
Taiwan
Material:
To be advised
Color:
Final detail to be provided on formal quotation sheet

Detail Specifications / Descriptions

Features

Max. Table Load: 400 kgs
X, Y Axes Ball Screw C5 Class
X, Y Axes Servo Motor
Steel Telescopic on Y Axis

Description

Two types of milling machine: inverter variable speed head (A) or step speed head (B)
Main casting made of meehanite cast iron
Ship from Taiwan with stable functions

Specification




ITEMS
MW0800-040A
MW0800-040B


TABLE
TABLE SIZE
1270x370 (1470x370 OPT.)


T SLOT (WxNO.xPITCH)
18x3x80


TRAVEL
X xYxZ- MANUAL
930 x520x360


XxYxZ- AUTO
920x500x360


FEED
LONG. & CROSS/MIN.
30-3000


VERTICAL PAPID/ MIN.
1150


SPINDLE
SPINDLE NOSE
N.S.T. 40


STEPS
INVERTER VARI.
16


SPINDLE SPEED RPM
60-3600
75-3600


SWIVELLING ANGLE
45° (R&L)


QUILL TRAVEL
140


QUILL FEEDS/REV
0.035/0.07/0.14


SPINDLE NOSE TO TABLE
0-500


SPINDLE CENTER TO COLUMN
185-685


CROSS TRAVEL OF RAM
500


MOTOR
VERTICAL SPINDLE
5HP-4P
5HP-2P/4P


X,Y AXIS MOTOR
750W AC SERVO


Z AXIS MOTOR
1HP-12P (850W AC SERVO OPT.)


Z AXIS MOTOR
1/8HP-2P


SIZE
MACHINE (LxWxH)
1870x1700x2500


NET WEIGHT(KGS)
2250




Standard Accessories :

X,Y Axis Ball screw C5 Class
Vertical Head Auto Lub. Pump
X,Y Axis Servo Motor

Optional Accessories:

Model: A only
with vertical mechanic
Vari. speeds head
Range: 80-3800rpm
Motor: 5HP-4P
Z Axis Servo Motor 30-1150mm/min
X Axis Travel: 1120mm

The product pictures are for your reference only: final spec & accessories based on formal quotation
