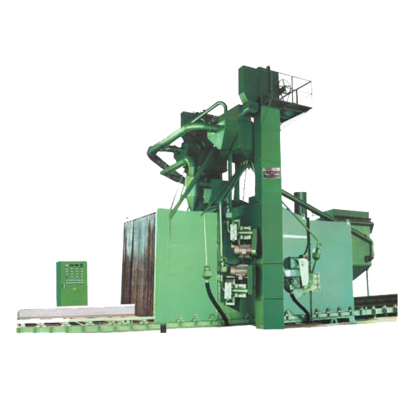

FLOOR TYPE ROLLER CONVEYING SHOT BLASTING M/C

This m/c is employed roller to convey the work piece, simple of operating, whom operator just deposits the un-processed work piece on the roller before shot-blasting tunnel inlet and the rolling roller will convey the work piece pass through the shot-blasting tunnel, Meanwhile, the work piece surface will be shoted steel ball by shot wheelabrators in hi-speed and continuously, after then, the casting sand, scaling & burring etc., which adhesived on the work piece surface will be cleaned, The processed work piece will be shined & burnished and convenient for next step processings.

The rolling speed of roller can be adjusted due to work piece treating requirement, which can be turned more quickly for cleaned work piece, otherwise those will be runned slowly.

This m/c can be treated large size casting work piece and can be loaded 10 ton [max.] for single work piece, any how, I beam, steel foundry, construction frame ,steel plate, machine weldments & large heat-treating work pieces etc.,

Model:CH-108-1
Shot wheelabrator:ø360x62mmx4sets
Shoting power:10HPx4
Projecting area[WxH]:600x750mm
Max, load:2,000kg
Dust collector power:10HPx1

Model:CH-108-2
Shot wheelabrator:ø360x62mmx8sets
Shoting power:15HPx8
Projecting area[WxH]:1,000x1,500mm
Max, load:5,000kg
Dust collector power:15HPx1

Model:CH-108-3
Shot wheelabrator:ø360x62mmx12sets
Shoting power:20HPx12
Projecting area[WxH]:1,800x2,000mm
Max, load:10,000kg
Dust collector power:20HPx1

Model:CH-108-4
Shot wheelabrator:ø360x62mmx16sets
Shoting power:20HPx16
Projecting area[WxH]:2,500x2,400mm
Max, load:10,000kg
Dust collector power:25HPx1
We reserve the right to modify the designs & specifications. so that,those are subjected to change, without prior notice.
Machine made available on request.
