RX110 engine parts
- Model:
- RX110-010
- Country of Origin:
- Taiwan
- Material:
- steel alloy
Detail Specifications / Descriptions
SYM Original Size: 52.4 x 51.5 (111cc ) 2V

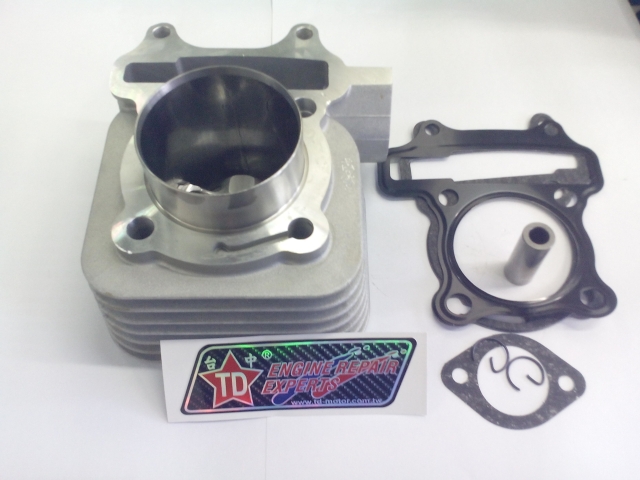

RX110-010 RX110 52.4 mm cylinder
RX110-010-f RX110 52.4 mm cylinder ( forging high Compression)
RX110-01055 RX110 55 mm cylinder ( 122.3 cc )
RX110-01055h RX110 55 mm cylinder ( high Compression)
From 58.5 mm start to cut case
RX110-010-58.5 RX110 58.5 mm cylinder (138.4 cc )
RX110-010-61 RX110 61 mm cylinder (150.5 cc )
RX110-030-300-13 RX110 300 microns stroke extended crankshaft (54.5 mm,forging, 13 pin)
RX110-030-300-15 RX110 300 microns stroke extended crankshaft (54.5 mm,forging, 15 pin)
RX110-030-550 RX110 550 microns stroke extended crankshaft (57 mm,forging, 13 pin )
RX110-CAM RX110 high angle Camshaft
----------------------------------------------------------------------------------------------------
Especificación detallada
SYM tamaño original : 52.4 x 51.5 (111 cc ) 2V
RX110-010 RX110 52.4 mm cilindro
RX110-010-f RX110 52.4 mm cilindro (forjado+compresión alta)
RX110-010-55 RX110 55 mm cilindro ( 122.3 cc )
RX110-010-55h RX110 55 mm cilindro (compresión alta)
Desde 58.5 mm empieza a cortar el bloque
RX110-010-58.5 RX110 58.5 mm cilindro (138.4 cc )
RX110-010-61 RX110 61 mm cilindro (150.5 cc )
RX110-030-300-13 RX110 300 cigüeñal de curso extendido (54.5 mm,forjado, 13 pin)
RX110-030-300-15 RX110 300 cigüeñal de curso extendido (54.5 mm,forjado, 15 pin)
RX110-030-550 RX110 550 cigüeñal de curso extendido (57 mm,forjado, 13 pin )
RX110-CAM RX110 árbol de levas(de ángulo alto)
