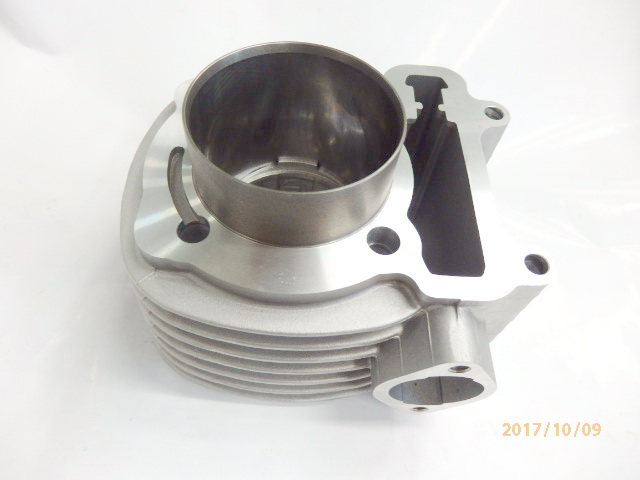

X'PRO 125, cylinder
- Model:
- X PRO125-010
- Country of Origin:
- Taiwan
- Material:
- steel alloy
Detail Specifications / Descriptions
Taida ceramic cylinder is durable than founding cylinder.
Its liner is not steel material but applied a coat made form ceramics by electroplate technology.
The forging piston waste time to produce and need high skill to make, but it can use for a long time and more hard than usually one.
X'PRO 125=Flyte 125
(X'PRO 125 ビッグボアシリンダー )
SYM Original Size: 52.4 x 57.8 (124.6cc ) 2V
X'PRO125-01058.5 X'PRO 125 Big bore 58.5 mm cylinder (155.3 cc)
Taida’s X'PRO125 58.5 mm cylinder don’t cut the engine block.
X'PRO 125-01058.5-C X'PRO 125 Big bore 58.5 mm cylinder ceramic
X'PRO 125-01059 X'PRO 125 Big bore 59 mm cylinder (158 cc)
Taida’s X'PRO125 59 mm cylinder don’t cut the engine block.
X'PRO 125-01061 X'PRO 125 Big bore 61 mm cylinder (168.9 cc)
Taida’s X'PRO125 61 mm cylinder must cut the engine block.
X'PRO 125-01063 X'PRO 125 Big bore 63 mm cylinder (180.2 cc)
X'PRO 125-01063.5 X'PRO 125 Big bore 63.5 mm cylinder (183 cc)
X'PRO 125-01063.5f X'PRO 125 Big bore 63.5 mm cylinder forging (183 cc)
X'PRO 125-01065 X'PRO 125 Big bore 65 mm cylinder (191.8 cc)
X'PRO 125-01065-f X'PRO 125 Big bore 65 mm cylinder forging (191.8 cc)
----------------------------------------------------------------------------------------------------
Especificación detallada
El cilindro cerámico de Taida es más duradero que el fundido.
En el interior, el material no es de acero, pero se usa la cerámica para cubrir a través de la tecnología de electrochapeado.
La duración de porducir el pistón forjado es más larga, así que el forjado es más duradero que el fundido.
X'PRO 125=Flyte 125
SYM tamaño original : 52.4 x 57.8 (124.6cc ) 2V
X'PRO125-01058.5 X'PRO 125 Big bore 58.5 mm cilindro (155.3 cc)
X'PRO125 58.5mm cilindro de Taida no necesita cortar el bloque del motor.
X'PRO 125-01058.5-C X'PRO 125 Big bore 58.5 mm cilindro cerámico
X'PRO 125-01059 X'PRO 125 Big bore 59 mm cilindro (158 cc)
X'PRO125 59mm cilindro de Taida no necesita cortar el bloque del motor.
X'PRO 125-01061 X'PRO 125 Big bore 61 mm cilindro (168.9 cc)
X'PRO125 61 mm cilindro de Taida necesita cortar el bloque del motor.
X'PRO 125-01063 X'PRO 125 Big bore 63 mm cilindro (180.2 cc)
X'PRO 125-01063.5 X'PRO 125 Big bore 63.5 mm cilindro (183 cc)
X'PRO 125-01063.5f X'PRO 125 Big bore 63.5 mm cilindro forjado(183 cc)
X'PRO 125-01065 X'PRO 125 Big bore 65 mm cilindro (191.8 cc)
X'PRO 125-01065-f X'PRO 125 Big bore 65 mm cilindro forjado(191.8 cc)
