Corner Wrap&Tamper Proof Labeling Machine

Introduction---
Fast & Precise Corner Labeling Option

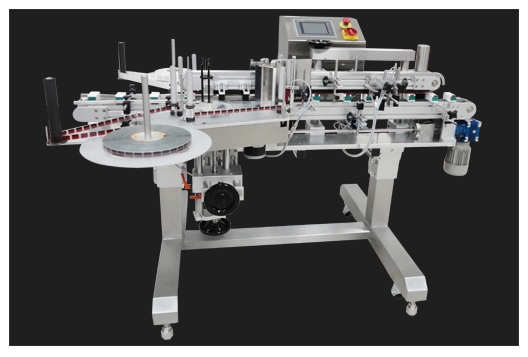

PL-252 Corner Wrap &tamper proof automatic labeling machine is suitable for corner labeling for various carton box products. Adapt inline continuous labeling without product pause. Which is most suitable tamper proof & corner labeling product within the market.

Human Technology Adjustment, No Need For Complicated Part Change Over
Well designed structure efficiently adjust applicator position and related assembly, complicated part change over is not required. Through touch screen will able to proceed detail and specific settings. Inbuilt guide mode and trouble shooting enable both regular staff and temporary personnel efficiently operate the machine to achieve production demand.

Monitoring And Management To Ensure Product Perfection
Equipped with production quantity set and precount function for production monitoring purpose. Able to customize equip various detection and warning function for the production management. To ensure labeling accuracy precision and meet strict quality demand.



Features---
1.The main labeler structure is manufactured from S304 stainless steel with anodized process and high quality aluminum.

2.It is complied with GMP standard that provides easy maintenance and for a long durable life.

3.The mobility castor and stainless steel fixing nut are designed to flexibly move the machinery to support another production line to boost the invest benefits.

4.It provides a wide range adjustment ability by equipped with hand wheel mechanism for easy adjustment of applicator and depended on products.

5.In built instruction and trouble shooting to provide for learning instructions and provide a prompt solution for operation problem and quickly reverted from the panel to reduce the personnel training time and avoid any shutdown cost.

6.30 sets memory modules to record the best labeling setting method for the best productivity.

7.Smart label length set to quickly achieve for perfect position of label by counter.

8.Missing label set prevents product miss-labeled to ensure product accuracy while production and fulfill production QC procedure.

9.A built-in counter can either run freely keeping track of the number of products labeled to control the production.

10.Production preset function that the labeler automatically stops when the desired numbers of products have been labeled for efficient production management.

11.Auto label start up mode while the power been switch on, the machine will enter labeling condition automatically as previous run without reset.

12.Labeling delay function that it is ideal for small scale adjustment and could do Calculate digitally for dispensing speed and position.



Specifications---
Supply voltage: 220/110 VAC 50/60Hz 1Phase
Power consumption: 820 VA
Dispensing Speed: 40m/min max.
Conveyor Speed: 40m/min max.
Applicator Height: 80mm
Label size: 80mm x 300mm max.
Spool Diameter: 76mm
Dimension: 1700mm (L) x 950mm(W) x 1500mm(H)
---Specifications are subject to change without prior notice----
