Wrap Around Labeling Machine

Introduction---
Modular Design

The labeler structure and all components are standardized and unitized. Parts can be easily adapted with various demands and bring out the best efficient.

Personalized Technology Controlling System

Easy and fast operation and controlling, excellent stability brings the real beauty shows up in the performance results of your labeled products.

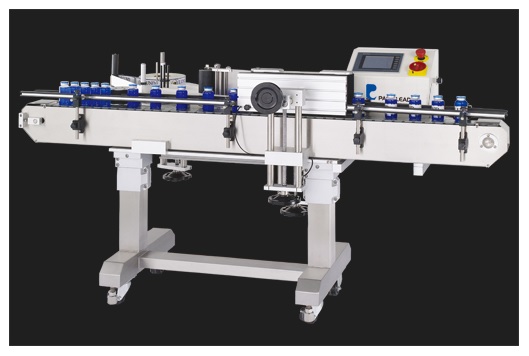

The PL-501 wrap around automatic labeling machine stand type round bottle labeling machine is suitable for adhesive label to be applied on straight sided and various material of cylindrical container. The PL-501 wrap around automatic labeling system can be used as stand alone unit or as a part of an integrated production line with filling, capping, and induction sealing machines.

Much more user friendly devices such as printer, turn table for feeding and collection are also available, these provides a great function flexibly and expendability. Pack Leader\'s DIY design provide users an easy machine adjustment condition and a personalize technology controlling system for easy operation, adjustable hand wheel and operator friendly accessories for fast and easy operation. The rigid stainless machine body provides a high stability with user friendly operation and easy time-saving maintenance process.

PL-501 wrap around automatic labeling machine is a perfect production partner and your best choice of a long term investment!



Machine Structure---
1.Simple Mechanism Adjustment
It provides a little or big wide adjustment by equipped with hand wheel mechanism for easy adjustment of applicator. It would also provide flat and smooth labeling depended on product sizes and labeling position by suitable wrap station adjustment.

2.Customization
Structure adjustment, design modification and function expansion of machines are provided depended on customers.

3.Quality & Beauty
The labeler main structure is manufactured from S304 stainless steel with anodized process and high quality aluminum. It is complied with GMP standard that provides easy maintenance and for a long durable life. Top chain made by FRP chain material and hard-wearing UPE guide rail applied for the conveyer system is designed to be the product appearance protected and efficient performance. This labeler also increases with years of reliable long term use.

4.Rigid Machine Base
Double square foot stands was made from stainless steel. This labeler is steady and does not take a lot of room. When labeler working, it would not quake and affect the labeling action.

5.Flexible Mobility
The mobility castor and stainless steel fixing nut are designed to flexibly move the machinery to support another production line. Therefore, it would boost the invest benefits.

Operation & Functions

6.Easy Operation
PLC based on Personalize control panel with large and advanced touch screen. Easy learning controlling panel is for simple operation with common sense.

7.30 Lots Cross Memory Module
Record the best labeling setting method for the best productivity. It is convenience for each production line of multiple products. Even for different person, it would also get into condition quickly.

8.Eight Synchronized Speeds Selection
Enable dispensing speed and conveyer speed fully synchronized for the most precise labeling effect.

9.Labeling Delay Function
It is ideal for small scale adjustment and could do Calculate digitally for dispensing speed and position. It offers quick and easy set up through its advanced touch screen control in addition to its clean, precise and accurate labeling applications.

10.In Built Instructions And Trouble Shooting
In-built instruction is provided for learning from the panel\'s instructions. It would reduce the personnel training time by training and operating at the same time. It could provide flexible arrangement for personnel to attain the most efficient production to obviate the possibility of personnel movement. And in built trouble shooting is to assist operators to provide a prompt solution for operation problem and quickly reverted to avoid any shutdown cost.

11.Smart Label Length Setting Function
Quick set counter for desired length and perfect positioning of label.

12.Missing Label Set
Prevent product miss-labeled to ensure product accuracy while production and fulfill production QC procedure.

13.Production Counter And Preset Function
A built-in counter can either run freely keeping track of the number of products labeled to control the production or can be used in batch mode where the labeler automatically stops when the desired numbers of products have been labeled for efficient production management.

14.Auto Labeling Start Up Mode
While the power been switch on, the machine will enter labeling condition automatically for the same production as previous run and no need for further setting, this mode can tremendously save operator\'s setting time and increase the production efficiency

15.Strict Quality Control
Pack Leader products are manufactured under strict ISO 9001 quality control procedure and also strictly tested by the European CE standard and UL perfectly meet safety quality regulations.



Specifications----
Supply voltage: 220/110 VAC 50/60Hz 1Phase
Power consumption: 760 VA
Dispensing Speed: 40m/min max.
Conveyor Speed: 22m/min max. (customizing optional)
Applicator Height: 150mm / 200mm
Label size: 150mm x 300mm max.
Conveyor Width: 110mm
Spool Diameter: 76mm
Dimension: 2000mm (L) x 1120mm(W) x 1050mm(H)
---Specifications are subject to change without prior notice----
