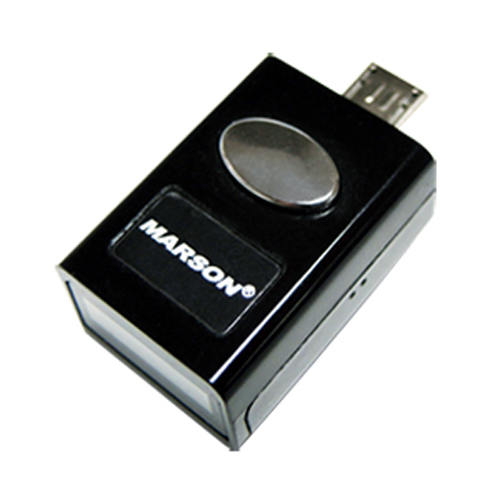

MT1095S MICRO USB MINI POCKET BARCODE SCANNER FOR LOGISTICS WAREHOUSE MANAGEMENT
- Model:
- MT1095s
Detail Specifications / Descriptions
Introduction Without the complicated setup procedure and equipped with user-friendly USB HID interface, featuring plug-and-read convenience, MT1095s is designed to be the smallest USB barcodes scanner in the world.MT1095s micro usb barcode scanner can be directly mounted on a smartphone as an auxiliary barcode scanning devices via micro USB port and no driver is needed. Just plug it in and a consumer mobile device will become a mobile data collector with enterprise-class scanning performance. Features Small & Lightweight Two-way Communication Wide Compatibility Physical Scan Button Quick Installation Excellent Performance LCD Barcode Readability Low Power Consumption Specifications Optic & Performance Light Source 625nm visible red LED Sensor 1000 pixels CMOS Sensor Scan Rate 240 Scans/Sec Resolution 5mil/ 0.127mm Scan Angle 46° Print Contrast 30% Width of Field 85mm (13Mil Code39) D.O.F (Environment: 800 lux) 5 Mil Code39: 20 ~ 60mm (4 digits) 10 Mil Code39: 30~120mm (5 digits) 15 Mil Code39: 35~185mm (5 digits) 13 Mil UPC/ EAN : 30~140mm (13 digits) Physical Characteristics Dimension W19xL41.8xH12.5mm Weight 10g Color Black Material PC Trigger Scan Button On-screen Scan Key (on Host) Indicator Buzzer, LED Power Operation Voltage 5 VDC ± 5% Working Current < 115mA Standby Current < 60mA Surge Current < 600mA Connectivity Interface/ Profile USB HID (Android) USB VCP (Android) User Environment Operating Temperature 0~50˚C Storage Temperature -20~60˚C Humidity 0%~95%RH (Non-condensing) Drop Durability 1.5M Sealing IP42 Ambient Light 20,000 Lux (Fluorescent Light) 1D Symbologies UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar 2D Symbologies N/A Regulatory ESD Functional after 4KV contact, 8KV Air discharge EMC FCC Class B, CE Safety WEEE, RoHS 2.0
