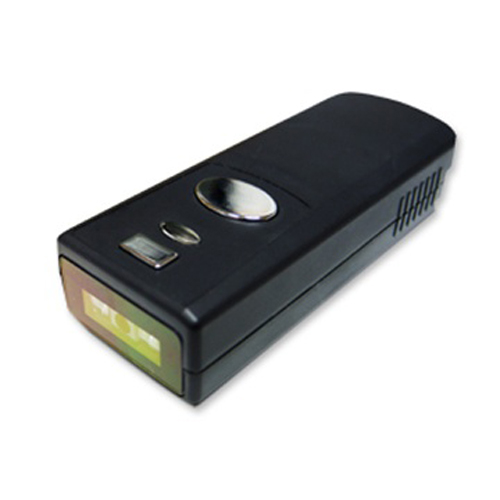

MT1197M MINI POCKET WIRELESS BARCODE DATA COLLECTOR FOR LOGISTICS WAREHOUSE MANAGEMENT

MT1197M MINI POCKET WIRELESS BARCODE DATA COLLECTOR FOR LOGISTICS WAREHOUSE MANAGEMENT

Model:
MT1197M

Detail Specifications / Descriptions

Introduction MT1197M is the smallest memory barcode scanner. It can read barcodes on screen, save up to 20,000 scanned data then batch transferring saved data to a master device on demand. Features Small & Lightweight MT1197M mini pocket scanner is the smallest wireless memory barcode scanner in its class. It is tiny at L65 x W24 x H18 mm and only 24.6 g in weight, which is ideal to be carried in pocket or purse. Wireless Freedom MT1197M mobile barcode scanner provides the flexibility of moving around your office or work area without having to worry about being close enough when you need to scan a barcode. Vibrating Indicator Built-in vibrator makes it possible for MT1197M barcode data collector to operate in both completely quiet environment and extremely noisy workplace. Waterproof Silicone Cover With silicone cover that comes with the product, the scanner is fully protected and immune to rain drops and dust. 2MB Non-volatile Memory Ideal for batch operation, its 2MB memory is capable of storing up to 20,000 barcodes and ensures the data is retained even when battery loses power. Specifications Optic & Performance Light Source 525nm visible green LED Sensor 1000 pixels CMOS Sensor Scan Rate 240 Scans /Sec Resolution 5mil/ 0.127mm Scan Angle 46° Print Contrast 30% Width of Field 102mm (13Mil Code39) Memory 2MB (20,000 barcodes) D.O.F (Environment: 800 lux) 4 Mil Code39: 20 ~ 55mm (4 digits) 5 Mil Code39: 20 ~ 70mm (4 digits) 10 Mil Code39: 30 ~ 130mm (5 digits) 15 Mil Code39: 45 ~ 180mm (5 digits) 13 Mil UPC/ EAN: 40~130mm (13 digits) Physical Characteristics Dimension W27×L68×H15 mm Weight 27g Color Black Material PC Cable 150 mm (Mini USB cable) Trigger Scan Button, iOS Hotkey Indicator Buzzer, LED, Vibrator Power Operation Voltage 3.7 VDC ± 5% Working Current < 220mA Standby Current < 65mA Idle Current < 500uA Battery 3.7V, 400mAh, Lithium Battery Number of Scan (per full charge) 5400 scans (1 scan/ 5 secs, Bluetooth connected) Connectivity Radio Bluetooth 2.1 + EDR (Class2) Range 33 ft/ 10m (line of sight) Interface/ Profile SPP (Android, Mac) HID (Android, iOS, Windows) User Environment Operating Temperature -20~50˚C Storage Temperature -30~60˚C Humidity 0%~95%RH (Non-condensing) Drop Durability 1.5M Sealing IP42 Ambient Light 20,000 Lux (Fluorescent Light) 1D Symbologies UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar Regulatory EMC CE, FCC part15, Class B ESD Functional after 4KV contact, 8KV Air discharge Safety RoHS 2.0, REACH, WEEE
