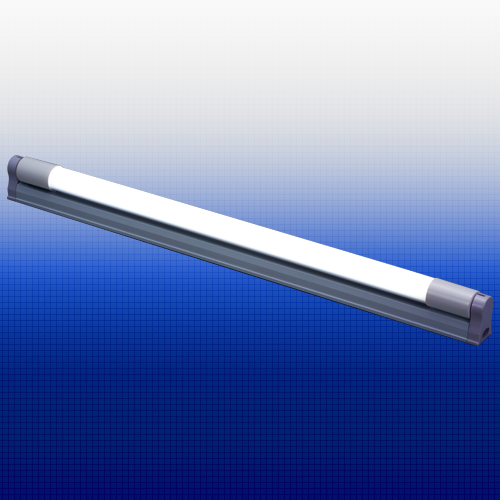

4 Feet LED Tube Light

4 Feet LED Tube Light

Model:
120CM TUBE

Detail Specifications / Descriptions

APPLICATION:
■ General use for commercial, office, parking area, residential and industrial
■ Retrofit and replace to conventional T8, T9, T10 fluorescent tubes

Module Spec.
Dimension:
Ø29.5 ±0.3mm x L1198 mm±1mm
Weight: 380g±10g
Housing / Color: Aluminum Alloy / Silver
Meterials: PC
Lamp Head: PC

Electric Spec.
Input Voltage: AC 90~240V
Power Type: Constant Current Internal Power
Input Frequency: 50-60Hz
Power Consumption: 18W
Power Factor: > 95%
Limits EMI: EN55022 B Limits
Average Life span: 40,000hours

Optical Spec.
Color:
True White / Warm White
Luminous efficiency: >85 lm/W
Light Temperature:
TW 5700-6300K, 6300-7000K
WW 2700-3000K
Operating Temperature Range: -20~50℃
Luminous flux(lm): TW 1600 lm / WW 1400 lm
CRI: >75%
Decrease: ≦20% (30,000 hours)

Packing
Packing:16PCS / BOX
Dimension / Weight: L124*W15*H15CM
N.W.: 7kg / G.W.: 7.5kg
