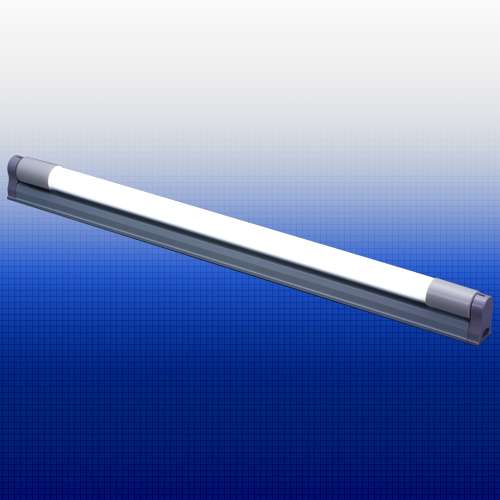

3 Feet LED Tube Light

3 Feet LED Tube Light

Model:
90CM TUBE

Detail Specifications / Descriptions

APPLICATION:
■ General use for commercial, office, parking area, residential and industrial
■ Retrofit and replace to conventional T8, T9, T10 fluorescent tubes

Module Spec.
Dimension:
Ø29.5 ±0.3mm x L895 mm±1mm
Weight: 280g±10g
Housing / Color: Aluminum Alloy / Silver
Meterials: PC
Lamp Head: PC

Electric Spec.
Input Voltage: AC 90~240V
Power Type: Constant Current Internal Power
Input Frequency: 50-60Hz
Power Consumption: 13.5W
Power Factor: > 95%
Limits EMI: EN55022 B Limits
Average Life span: 40,000hours

Optical Spec.
Color:
True White /Warm White
Luminous efficiency: 85 lm/W(white)
Light Temperature:
TW 5000-5700K, 5700-6300K
WW 2800-3200K
Operating Temperature Range: -20~50℃
Luminous flux(lm): TW 1200 lm / WW 960 lm
CRI: 75%
Decrease: ≦20% (30,000 hours)

Packing
Packing:20PCS / BOX
Dimension / Weight: L96*W20*H18CM
N.W.: 8.4kg
