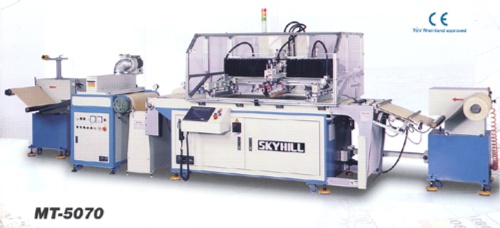

Roll to Roll WEB-FED Screen Printing Machine
|
| 产品描述 |
| 产品名称： |
Roll to Roll WEB-FED Screen Printing Machine |
| 型号： |
MT-5070 |
|
Applications :
This is specially-designed web-fed screen printing machine for flexible stock,both transparent and non-transparent,in rolls such as: diffuser,FPC,Paper,Transfer Paper,Stickers, OPP,PVC,Mylar,PC,PET,Plastic Leather,Aluminum Foil and so on. These can be used for the following products:
1. Heat transfers.
2. Electronics-FPC (Flexible Circuits),Membrane Switch,IMD and Diffusers etc.
3. Specialized labels for UL/CSA,wine and liquor bottles, Cosmetics and Shampoo Bottles,as well as Industrial,Toy, Automotive,Compact Disc and Video products.
4. Nameplates and graphic Overlays.
Feature :
1. User-friendly PC based control combined with touch screen monitor for maximum operation convenience.
2. The printing head is raised vertically for convenient access to screen and squeegee.
3. Vacuum suction table for efficient workpiece fixing,with blow back function.
4. The squeegee mechanism has a pressure stabilizer ensuring constant pressure at all times.
5. Automatic tension control.
6. Aluminum alloy machine frame ensures high stability and no deformation.
7. Safety guard with CE standard provides extra safety for the operator and machine.
8. Winding and unwinding use air shaft to prevent slippage, and include advanced web guide for precision and neatness.
9. The take up roller features vacuum suction,ensuring smooth film surface and proper film tension at all times.
10. Winding mechanism utilizes advanced sonar sensor for accurately sensing transparent and non-transparent film.
11. Precision linear motion guides are provided on vertical and horizontal slideways for extremely smooth and stable traverse.
12. Two types of drying device available:hot air drying and UV curing(Optional).
13. Punching device. (Optional) |
|
|
