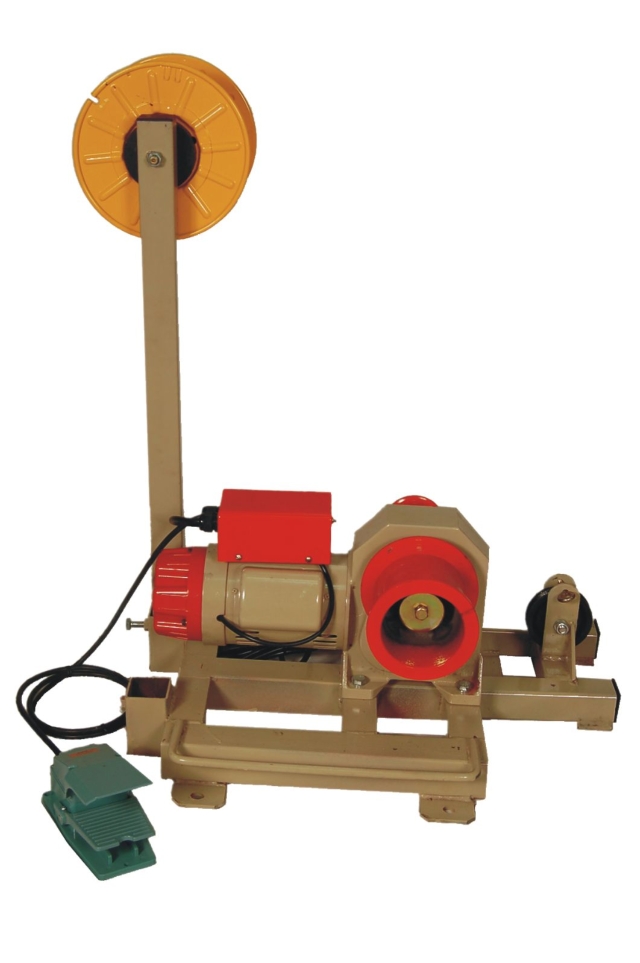

Cable Puller HC - 2500

Features:

•Dual pulling capacity of 2500kg and 1500kg

•Dual speed varies according to drum size

•A overload protection switch ensure automatic shutoff

•Electromagnetic spring-applied fail safe brake

•Heavy duty high efficiency ball bearing on all running surfaces

•Rugged high power induction motor of proven reliability

•Case hardened gear train for maximum mechanical efficiency

•Suitable for continuous pulling to tackie the toughest wall, ground and underground pulling applications


Specifications
Drum type Large drum Small drum
Capacity(kg) 1500 2500
Rope speed m/min 50HZ 8 5
60HZ 10 6
Gear train Hypoid gear plus spur gears
Gear ratio 154:1
Motor rating IP44 w 800W
Drum dimension mm Width 124 104
Drum Dia 110 74
Flange Dia 166 94
Cable puller weight kg 60
Gross weight kg 83
Box dimension mm 610×720×500

Warning:
Winches are not to be used for the moving of persons.

Warranty:

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Wire ropes are not included under warranty.

Standard Accessories:

Rope arm

Base plate

Wire rope 8mm × 50m

Detachable rope storage roller

Foot control with 2mm² × 3C × 3m lead

Power lead 2mm² × 3C × 3M
