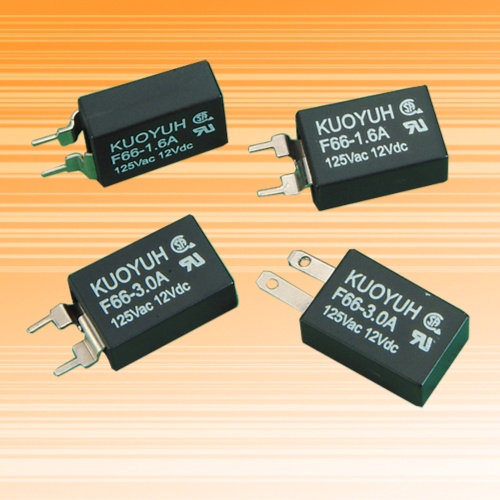

Specifications：
Certifications: UL E155159
Rating : 0.5 ─ 5.0Amp . Input Power :125Vac 12Vdc . Interrupting Capacity : 200Amp× 125Vac . Dielectric
Strength : 1,500Vac 1 minute. Insulation Resistance: >500 Meagaohms .Voltage Drop : Less than 0.25v.
Reset Time : 200% of rating current within 50 seconds .150% of rating current within 5 seconds .
Contact Endurance : 125Vac × 150 % of rated current >500 Cycles.
Reset : Manual Push Reset/Auto Reset.
Calibration (at 25℃)
0.5Amp-1.3Amp
100%of rated current :hold,No-Trip
150%of rated current :Trip in one Hour
200%of rated current :Within 40 seconds
300% of rated current :Within 4.0 seconds
1.4Amp-5.0Amp
100%of rated current :hold,No-Trip
150%of rated current :Trip in one Hour
200%of rated current : Within 45seconds
300% of rated current : Within 4..5 seconds |
|
|
|
|
