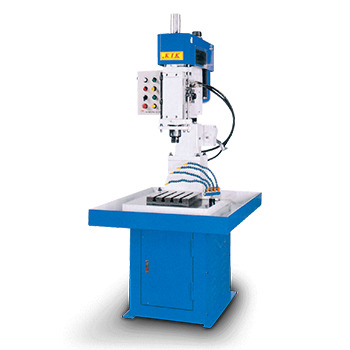

Hydraulic Drilling Machine

Hydraulic Drilling Machine

产品型号:
H-9150

详细规格及用途描述

ModelH-5100H-6150H-7150H-9150H-2000H-2500
Max. Drilling Capacity10mm16mm25mm35mm20mm25mm
Spindle TaperJT6MT2MT3.NT30MT4.NT40MT3MT3
Spindle Travel100mm150mm150mm150mm130mm130mm
Spindle Speed1000.2000.30001000.1500.2000500.1000.1500100.200.300300.660.1070 (50HZ)
470.790.1280 (60HZ)
500.1180.1350.1910 (50HZ)
600.1410.1620.2290 (60HZ)
Number of Speed333333
Swing360mm460mm460mm520mm460mm460mm
Column Diameter80mm102mm102mm115mm92mm102mm
Table Diameter400x600mm600x800mm600x800mm600x800mm600x800mm600x800mm
Spindle to Table Distance 100-400mm100-700mm350-700mm350-750mm100-700mm100-700mm
Motor1HP2HP2HP3HP2HP2HP
Hydraulic Power kg/cm220kg/cm220kg/cm220kg/cm220kg/cm2220kg/cm2220kg/cm2
Overall Height1600mm1800mm2100mm2100mm1900mm1900mm
Weight260kg380kg600kg700kg300kg380kg
