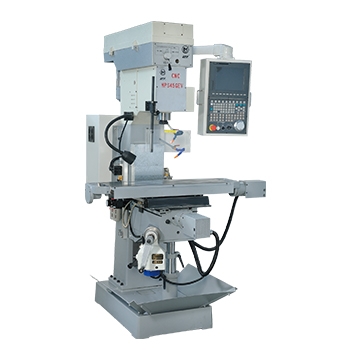

CNC Drilling / Milling Machine
- 产品型号:
- CNC-MPS45GEV
详细规格及用途描述
| Model | CNC-MPS45G | CNC-MPS45GEV |
|---|---|---|
| Max. Drilling Capacity | 40mm | 40mm |
| Max. Milling Capacity | - | - |
| Spindle Taper | MT4 | MT4 |
| Spindle Stroke | 120mm | 120mm |
| Quill Feed | - | - |
| Spindle Speed (H) (L) | 2-Speed Gear Box 8-Speed 325-582-965-1650rpm 54-97-160-276rpm | 240-1800rpm 170-900rpm |
| Column Diameter | Square | Square |
| Spindle to Column | 325mm | 325mm |
| Table Diameter (TG) (TM) (TC) | 260x890mm | 260x890mm |
| Table Travel (TC) | X-axis:440mm Y-axis:200mm Z-axis:480mm | X-axis:440mm Y-axis:200mm Z-axis:480mm |
| Spindle to Table (TG/TM) (TC) | Z-axis:170-650mm | Z-axis:170-650mm |
| Base Diameter | 560x895mm | 560x895mm |
| Motor(2-speed) | - | - |
| Coolant | 2.25kw | 2.25kw |
| LED Light | - | - |
| Overall Height | 2070mm | 2070mm |
| Weight | 850kgs | 850kgs |
