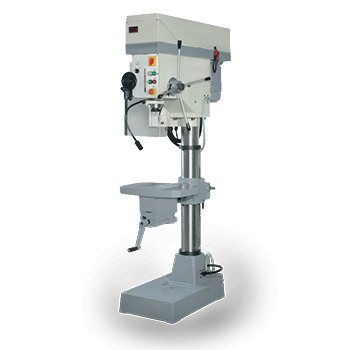

MP-45MV Mechanic Variable Speed Drilling & Tapping Machine

MP-45MV Mechanic Variable Speed Drilling & Tapping Machine

产品型号:
MPT-45MV

详细规格及用途描述

ModelMP-45MVMPT-45MV
FunctionDrillingDrilling & Tapping
Max. Drilling Capacity45mm45mm
Max. Tapping Capacity-M26
Spindle TaperMT4
Spindle Stroke130mm
Quill FeedAutomatic
0.06-0.1-0.2mm
Manual
Spindle Speed
(H)
(L)
Mechanic Variable Speed
240-1800 rpm
170-900rpm
Column Diameter140mm
Spindle to Column375mm
Table Diameter
(TG)
(TM)
(TC)
300x550mm
390x505/5"Vise
255x630mm
Table Travel
(TC)
X-axis:425mm
Y-axis:200mm
Z-axis:440mm
Spindle to Table
(TG/TM)
(TC)
380-840mm
220-660mm
Base Diameter450x720mm
Motor(2-speed)1.5 / 3.0kw
Coolant0.125kw
LED Light24V
Overall Height2025mm
Weight500kgs
