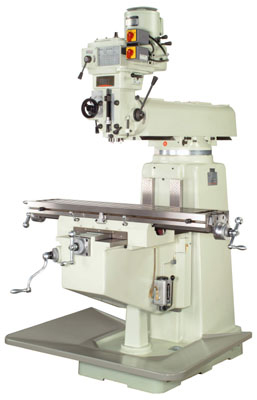

传统铣床

传统铣床

产品型号:
LC-185 Series
原产地:
台湾

详细规格及用途描述

Rigid head titling system.
Z axis box way design for heavy duty work.
meehanite casting structure.

SPINDLE UNIT -
R8 and NST30 are available.
Made from one piece of Ni-Cr alloy steel.
Supported by two precision angular contact and one ball bearing to ensure rigidity.
Inner taper was hardened and precision grounded.
Inner taper runout keeps within 0.002mm.

MILLING HEAD GEAR AND QUILL -
Harden and ground spindle, quiet and smooth, free of noise and vibration.
Use dynamically balanced pulleys and precision bearings.
2HP to 3HP spindle motor are available.
Spindle back gear running in grease packed housing ensure fatigue strength and low noise.
Chrome coated and mirror ground finished quill.

ADJUSTABLE BACKLASH NUT -
Unique double nuts and backlash adjusting design, contact face enlarged ensuring accuracy over term and easy for backlash adjustment.
