Product Information - High-Frequency Plastic Welding Machine.
|

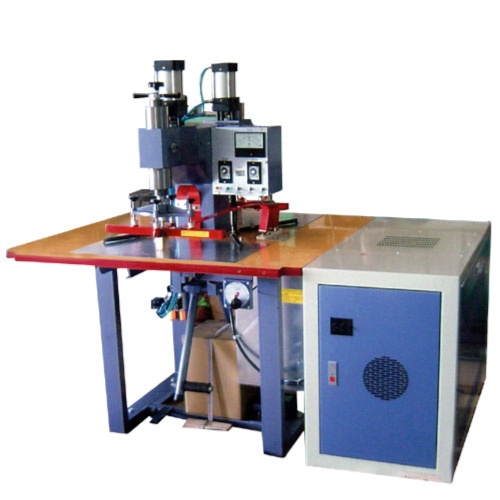

Click for a larger picture
High-Frequency Plastic Welding Machine.
|
| Product Description |
| Product Name: |
High-Frequency Plastic Welding Machine. |
| Model: |
Model:PW-5000T~PW8000T / PW-5000FA~PW-8000FA |
| Country of Origin: |
Taiwan |
|
| > Detail Specifications / Descriptions |
ARC Suppressor
The electronic circuit on this machine works automatically when sparks occur and cuts high frequency immediately to suppress arce and minimize damage to electrodes and materials. Alarm lamp also Works simultaneously.
Jamming Prevention Device
With frequency stabilizer and high frequency magnetic leakage suppressor. This device prevents leakage of electro magnetic radiation to avoid jamming other electrical instruments such as television, radio, etc.
Safety Device
When the current exceeds its limits. The ooer-current relay works to protect oscillation tubes and rectifier. Frequency deviation caused by faulty operation is also prevented.
High Power Welder
Using a specially designed mechanism the foot pedal pressure is high enough to meet most operating conditions. The high quality components make these machines work very smoothly and precisely.
Easily Adjustable
Output power can be adjusted at the tuner according to electrode size and material thickness. Other control devices. And our special electrical circuits have cut down required welding time considerably to raise the machine productivity.
Usage:
Pure PVC or soft & hard PVC leather that contain over 30% PVC. PVC transfers to genuine leather. All these special PVC materials can be welded and cut.
Applications:
Foot Wear, Trade Mark Labels, Stickers.
Raincoats, Tarpaulins, PVC Umbrellas.
Traveling Bags, Handbags, Beach Bags.
Stationery, Nams-Plate Badges, Inflatable Toys, Watermatress, Air Boats.
Seats, Sun Visor, Door Pannel for Vehicles & Motorcycles.
Sealing for Blister Packaging.
Specifications: Model PSH-801 PSH-1501
H.F. Output Power 8kw 15kw
SscillationFrequency 27.12 MHZ or 13.56 MHZ
Power Supply AC220/380/400/415/440V 30. Voltage to be arranged at instruction.
Input Power 15KVA 25KVA
Oscillation Tube 7T69RB 8T85RB
Rectifier Silicon Rectiffiter S5106 or S5105
Aic Suppressor Highly Sensitive preventor
Upper Plate 500 x 600mm 600 x 800mm
Lower Electrodes Size: 350 x 700 / 400 x 800; 350 x 700 / 410 x 800
Type of Operation: Foot / Pneumatic Foot / Pneumatic
Net Weight (kgs): 340 / 360; 380 / 400
Gross Weight with Packaging: 440 / 460; 480 / 500
Create measurement (cuft) : 128; 130
|
|
High-Frequency Plastic Welding Machine.
|
