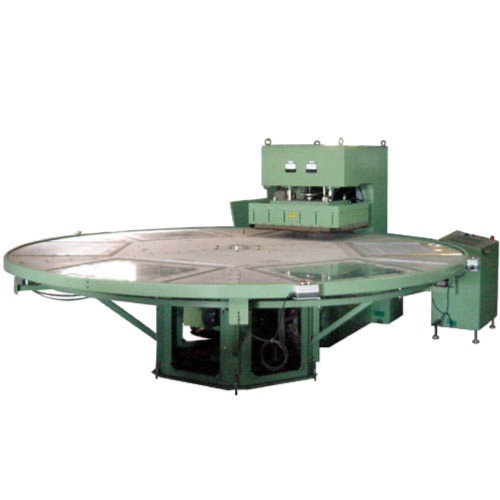

high-frequency plastic welders

high-frequency plastic welders

Model:
Model:PS-801R / PS-1501R / PS-2501R

Detail Specifications / Descriptions

ARC Suppressor
The electronic circuit on this machine works automatically when sparks occur and cuts high frequency immediately to suppress arce and minimize damage to electrodes and materials. Alarm lamp also Works simultaneously.
Jamming Prevention Device
With frequency stabilizer and high frequency magnetic leakage suppressor. This device prevents leakage of electro magnetic radiation to avoid jamming other electrical instruments such as television, radio, etc.
Safety Device
When the current exceeds its limits. The ooer-current relay works to protect oscillation tubes and rectifier. Frequency deviation caused by faulty operation is also prevented.
High Power Welder
Using a specially designed mechanism the foot pedal pressure is high enough to meet most operating conditions. The high quality components make these machines work very smoothly and precisely.
Easily Adjustable
Output power can be adjusted at the tuner according to electrode size and material thickness. Other control devices. And our special electrical circuits have cut down required welding time considerably to raise the machine productivity.
Usage:
Pure PVC or soft & hard PVC leather that contain over 30% PVC. PVC transfers to genuine leather. All these special PVC materials can be Processed.

Applications:

Foot Wear, Trade Mark Labels, Stickers.
Raincoats, Tarpaulins, PVC Umbrellas.
Traveling Bags, Handbags, Beach Bags.
Stationery, Nams-Plate Badges, Inflatable Toys, Watermatress, Air Boats.
Seats, Sun Visor, Door Pannel for Vehicles & Motorcycles.
Sealing for Blister Packaging.

Specifications: Model PS-801R PS-1501R PS-2501R
H.F. Output Power 8kw 15kw 25kw
Oscillation Frequency 27.12 MHZ or 13.56 MHZ
Power Supply AC220/380/400/415/440V 30. Voltage to be arranged at instruction.
Input Power 15KVA 25KVA 35KVA
Oscillation Tube 7T69RB 8T85RB 8T25RB
Rectifier Silicon Rectifier S5106 or S5105
Aic Suppressor Highly Sensitive preventor
Upper Plate 500 x 600mm 600 x 800mm 800 x 900mm
Lower Plate 550 x650mm 650 x850mm 850 x 950mm
Press Stroke 150mm
Type of Operation Pneumatic
