TWO LAYER HDPE/LDPE/ LLDPE HIGH SPEED PLASTIC INFLATION MACHINE

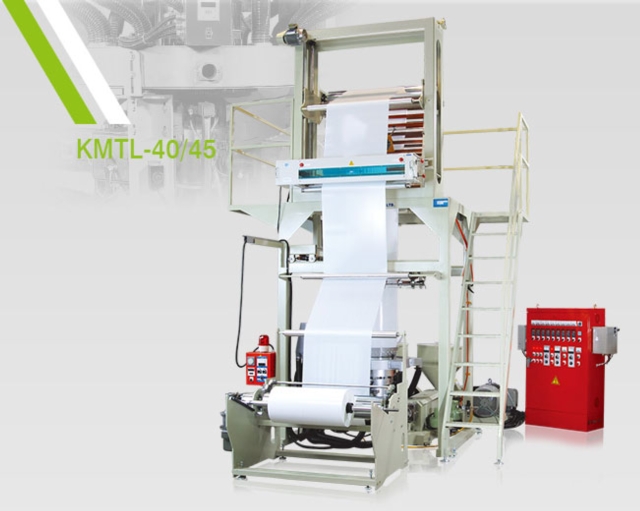

  • Model：KMTL-40/45
Inquire Now
DETAIL SPECIFICATIONS

MODEL KMTL-40 KMTL-45
KMTL-40 KMTL-45
SUITABLE MATERIAL HDPE/LDPE/LLDPE HDPE/LDPE/LLDPE
HDPE/LDPE/LLDPE HDPE/LDPE/LLDPE
FILM THICKNESS 0.010-0.15 mm 0.010-0.15 mm
0.010-0.15 mm 0.010-0.15 mm
FILM WIDTH RANGE 800 mm 900 mm
800 mm 900 mm
FILM OUTPUT 15-70 kgs/hr 20-90 kgs/hr
15-70 kgs/hr 20-90 kgs/hr
EXTRUDER UNIT
SCREW DIAMETER/TYPE Ø 40mm x 2 Ø 45mm x 2
Ø 40mm x 2 Ø 45mm x 2
SCREW L/D RATIO 26:1 26:1
26:1 26:1
HEATING CAPACITY 13.2 kw 17.2 kw
13.2 kw 17.2 kw
AUTO THERMO CONTROL 6 zone 2 zone
6 zone 2 zone
BARREL COOLING FAN 1/8 HP x 2 1/8 HP x 4
1/8 HP x 2 1/8 HP x 4
DRIVING MOTOR AC 20 HP + Inverter AC 20 HP + Inverter
AC 20 HP + Inverter AC 20 HP + Inverter
DIE UNIT
DIE DIAMETER Ø80/175 mm Ø100/200 mm
Ø80/175 mm Ø100/200 mm
AIR RING DIAMETER Ø120/200 mm Ø150/250 mm
Ø120/200 mm Ø150/250 mm
HEATING CAPACITY 6.2 kw 10 kw
6.2 kw 10 kw
AUTO THERMO CONTROL 2 zone 3 zone
2 zone 3 zone
COOLING BLOWER 3 HP 5 HP
3 HP 5 HP
TAKE-UP UNIT
TAKE-UP ROLLER 1000 mm 1100 mm
1000 mm 1100 mm
EFFECTIVE WIDTH 900 mm 1000 mm
900 mm 1000 mm
TAKE-UP MOTOR AC 1/2 HP AC 1/2 HP
AC 1/2 HP AC 1/2 HP
TAKE-UP SPEED 70 m/min 70 m/min
70 m/min 70 m/min
ELEVATING MOTOR AC 1/2 HP AC 1/2 HP
AC 1/2 HP AC 1/2 HP
WINDING UNIT
ROLLER WIDTH 1000 mm 1100 mm
1000 mm 1100 mm
WINDING WIDTH 900 mm 1000 mm
900 mm 1000 mm
WINDING MOTOR DC 1 HP DC 1 HP
DC 1 HP DC 1 HP
MACHINE DIMENSION 450x200x400 cm 470x220x450 cm
450x200x400 cm 470x220x450 cm
* Remark: The above machine specification and production range can be changed without any notice due to kind of different application.
